SRL1G

Single Diodes Overview

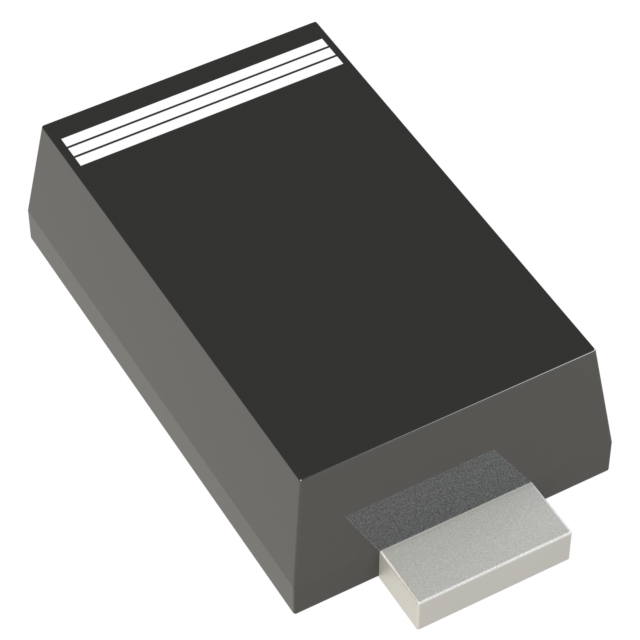

The SRL1G is a standard recovery surface-mount rectifier diode manufactured by Diotec Semiconductor. It features an average forward current rating of 1 A and a peak forward surge current capability of 13 A at 50 Hz or 15 A at 60 Hz. The device supports a repetitive peak reverse voltage of 600 V with a maximum forward voltage of less than 1.1 V at 25°C and 1 A. Reverse leakage current remains below 1 µA at 25°C and 50 µA at 125°C when rated voltage is applied. The component operates within a junction temperature range of -50°C to +150°C.

Single Diodes Feature Summary

• Standard recovery characteristics suitable for general-purpose rectification applications
• Low forward voltage drop to minimize conduction losses
• Robust surge current handling capability for transient protection
• High thermal stability across extended operating temperature ranges

Single Diodes Applications

• General-purpose rectification in industrial electronics
• Power supply output rectification
• Polarity protection circuits
• White household appliances

Single Diodes Procurement Notes

Verify the specific ordering suffix against official documentation, as designations such as -AQ denote automotive qualification standards distinct from commercial grades. Confirm RoHS compliance status and REACH SVHC declarations directly through manufacturer channels prior to integration. Ensure procurement sources provide traceable datasheets matching the exact part number to avoid discrepancies in electrical ratings or package dimensions.

Single Diodes Selection Notes

Select this component for designs requiring reliable standard recovery performance in compact surface-mount layouts. Evaluate thermal resistance parameters relative to the copper pad area on the printed circuit board, as heat dissipation relies heavily on terminal mounting conditions. Compare forward voltage specifications against system efficiency targets and ensure the reverse voltage rating exceeds peak circuit voltages with adequate safety margins.

Single Diodes Part Context

This component belongs to the SRL series of standard recovery SMD rectifiers produced by Diotec Semiconductor. The series includes variants with different reverse voltage ratings, such as the SRL1J, which shares similar physical dimensions and current capabilities but offers a lower voltage threshold. These devices are designed for high-volume manufacturing processes utilizing automated placement equipment.

Single Diodes Replacement Considerations

The SRL1J serves as a direct substitute within the same product family, offering identical packaging and current ratings with a reduced reverse voltage specification.
