SSCDANN015PDAA5

Pressure Sensors Transducers Overview

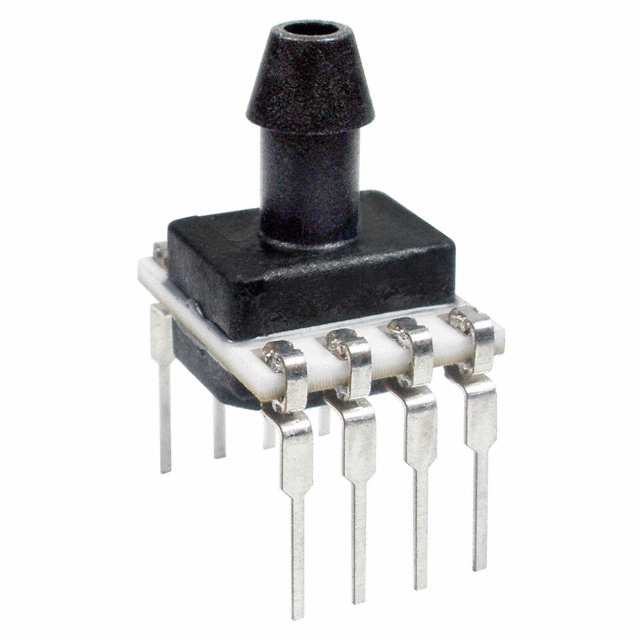

The SSCDANN015PDAA5 is a differential pressure sensor from Honeywell’s TruStability® SSC series, designed for board-mounted applications. It features an analog voltage output ranging from 0.5V to 4.5V with a supply voltage of 4.75V to 5.25V. The device measures pressures up to ±15PSI (±103.42kPa) and withstands overpressure up to ±30PSI (±206.84kPa). It utilizes an 8-DIP package with top ports and male connections sized at 0.19 inches (4.93mm). The sensor offers ±0.25% accuracy and operates within a temperature range of -40°C to 85°C.

Pressure Sensors Transducers Feature Summary

• Integrated signal amplification and temperature compensation for stable performance
• Differential pressure measurement capability with high overpressure tolerance
• Board-mount design with through-hole PC pin termination

Pressure Sensors Transducers Applications

• Board-mounted industrial instrumentation
• HVAC system monitoring
• Medical gas flow measurement

Pressure Sensors Transducers Procurement Notes

Verify the specific ordering suffix to ensure correct voltage and port configuration. Confirm RoHS compliance status and moisture sensitivity level requirements for your assembly process. Check current availability as distribution may vary. Ensure the selected variant matches the required supply voltage and output span for your circuit design before procurement.

Pressure Sensors Transducers Selection Notes

Select this component when a differential pressure sensor with amplified analog output is required for board-level integration. The 8-DIP package facilitates through-hole mounting. Consider the ±15PSI working pressure range and 0.5V-4.5V output span relative to your microcontroller or ADC input limits. Verify that the male port size fits your tubing or hose connections.

Pressure Sensors Transducers Part Context

This part belongs to the TruStability® SSC family of silicon pressure sensors. These devices are known for high reliability and precision in demanding environments. The SSCDANN015PDAA5 specifically targets applications requiring robust differential pressure sensing with integrated signal conditioning.

Pressure Sensors Transducers Replacement Considerations

SSCDANT015PDAA3 is a related model but features a different supply voltage range (3V-3.6V) and output span (0.33V-2.97V). Verify electrical compatibility before substitution. No other direct substitutes are confirmed in public documentation.
