SSCSLNN015PAAA5

Pressure Sensors Transducers Overview

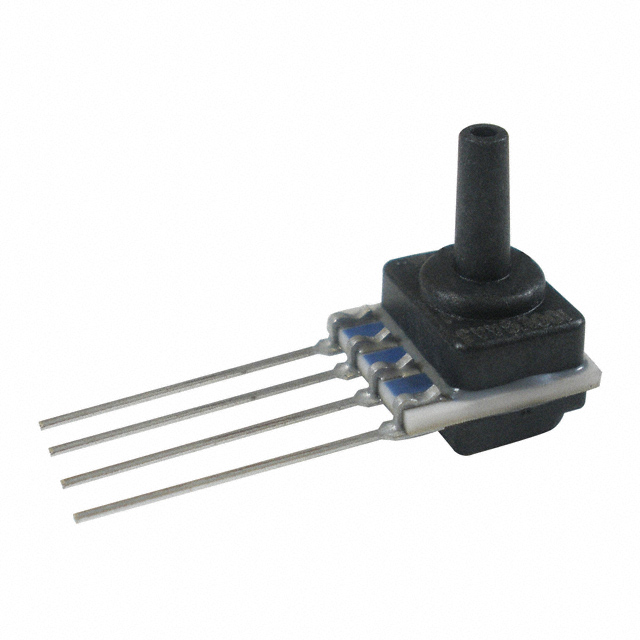

The SSCSLNN015PAAA5 is a board-mount absolute pressure sensor from Honeywell's TruStability SSC series. It features a silicon piezoresistive sensing element with an integrated ASIC for signal conditioning, amplification, and temperature compensation. The device provides an analog voltage output ranging from 0.5V to 4.5V relative to a supply voltage of 4.75V to 5.25V. Designed for through-hole mounting in a 4-SIP package, it offers high accuracy and stability for precise pressure measurement applications.

Pressure Sensors Transducers Feature Summary

• Integrated signal conditioning with amplification and temperature compensation
• Silicon piezoresistive sensing technology for stable performance
• Analog voltage output interface compatible with standard data acquisition systems

Pressure Sensors Transducers Applications

• Board-mounted industrial automation systems
• HVAC pressure monitoring
• Medical gas equipment
• Environmental control systems

Pressure Sensors Transducers Procurement Notes

Verify component status as the SSCSLNN015PAAA5 is listed as obsolete or discontinued by major distributors. Confirm availability of alternative models within the SSC series that maintain identical pinout and electrical specifications to ensure seamless integration into existing designs without redesigning the PCB layout.

Pressure Sensors Transducers Selection Notes

Select this component when board-mount simplicity and cost-effectiveness are prioritized over ruggedized packaging. Ensure the application environment remains within the specified operating temperature range of -40°C to +85°C. Verify that the required pressure range aligns with the 15PSI working pressure and 30PSI maximum pressure limits to prevent sensor damage.

Pressure Sensors Transducers Part Context

This part belongs to the TruStability SSC family, which focuses on compact, low-cost absolute pressure sensors. Unlike the HSC series which may offer different port configurations, the SSC line emphasizes direct board integration. The specific model indicates a 15PSI range with a SIP package, distinguishing it from DIP-packaged variants like the SSCDRNN series.

Pressure Sensors Transducers FAQ

What is the pressure type for this sensor?

The SSCSLNN015PAAA5 measures absolute pressure, referencing vacuum.

Does this sensor include temperature compensation?

Yes, the integrated ASIC provides full temperature compensation across the operating range.
