SSCSNBN015PGAA5

Pressure Sensors Transducers Overview

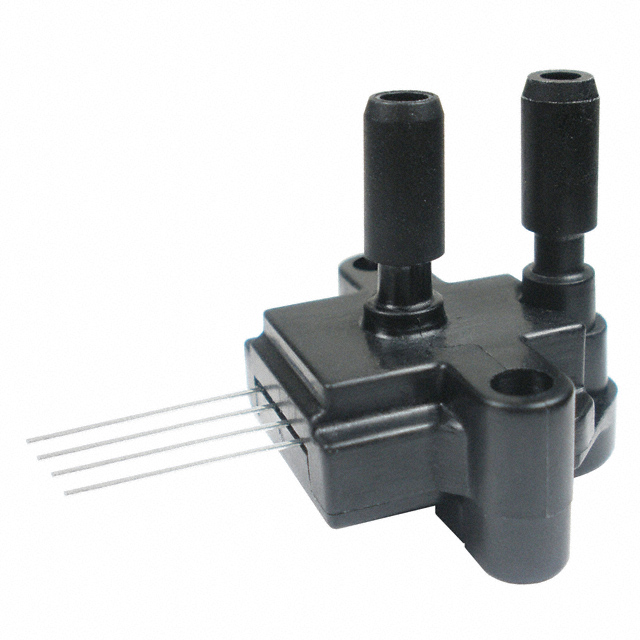

The Honeywell SSCSNBN015PGAA5 is a board-mount pressure sensor from the TruStability SSC series, designed for gage pressure measurement. It features an analog voltage output ranging from 0.5V to 4.5V with a supply voltage of 4.75V to 5.25V. The device has a working pressure of 15PSI (103.42kPa) and a maximum pressure of 30PSI (206.84kPa). It offers an accuracy of ±0.25% and operates within a temperature range of -40°C to 85°C. The sensor utilizes a 4-SIP package with through-hole mounting and dual male ports measuring 0.19 inches.

Pressure Sensors Transducers Feature Summary

• Integrated signal conditioning provides amplified and temperature-compensated analog voltage output.
• Dual-port configuration allows for simultaneous connection via male fittings on the same side.
• High precision performance ensures accurate gage pressure readings across the operating temperature range.

Pressure Sensors Transducers Applications

• Board-mounted industrial control systems
• HVAC monitoring and regulation
• Medical gas delivery equipment
• Automotive pneumatic subsystems

Pressure Sensors Transducers Procurement Notes

Verify the specific suffix PGAA5 against official Honeywell documentation to confirm port style and electrical characteristics. Ensure the application environment remains within the specified -40°C to 85°C operational limits. Confirm that the 15PSI working pressure aligns with system requirements. Check for RoHS compliance status in the latest datasheet revision. Validate pinout compatibility with the target PCB layout before integration.

Pressure Sensors Transducers Selection Notes

Select this model when a gage pressure sensor with high accuracy and integrated temperature compensation is required. The 4-SIP package suits through-hole assembly processes. Consider the dual-port design for applications needing separate input and output connections. Evaluate the 0.5V to 4.5V output span against the microcontroller or amplifier input range. Ensure the 15PSI rating exceeds the maximum expected system pressure.

Pressure Sensors Transducers Part Context

This component belongs to the TruStability SSC series, which focuses on cost-effective, high-accuracy pressure sensing solutions. The series utilizes piezoresistive technology with ASIC signal conditioning. The SSCSNBN variant specifically denotes a gage pressure sensor with dual male ports. This family is designed for reliable performance in demanding industrial and commercial environments.

Pressure Sensors Transducers Replacement Considerations

SSCSNBN030NDAA5: Higher pressure range variant.

Pressure Sensors Transducers FAQ

What is the reference pressure type for this sensor?

The SSCSNBN015PGAA5 measures gage pressure, referencing atmospheric pressure.

Does the sensor include temperature compensation?

Yes, the device features built-in temperature compensation to maintain accuracy across its operating range.
