SSL34 R7G

Single Diodes Overview

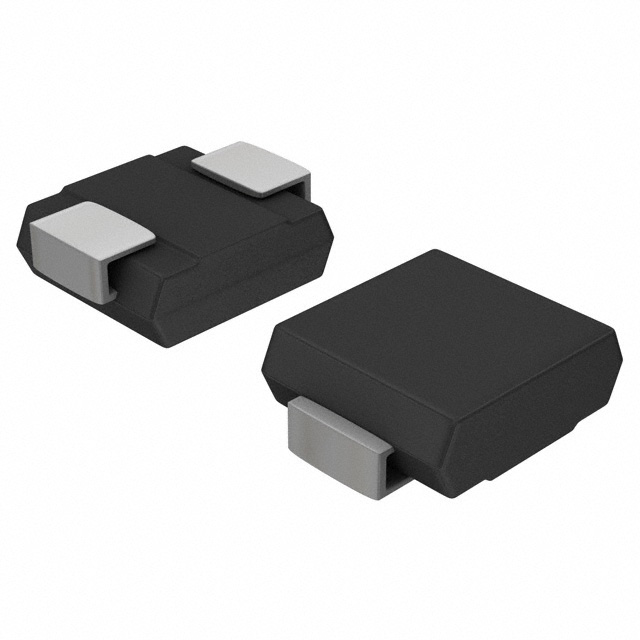

SSL34 R7G is a surface-mounted Schottky barrier rectifier manufactured by Taiwan Semiconductor Corporation. It features a 40V maximum repetitive peak reverse voltage and supports an average forward rectified current of 3A. The device utilizes metal-to-silicon majority carrier conduction to achieve low power loss and high efficiency. It is designed for applications requiring low voltage, high frequency inversion, free-wheeling, and polarity protection.

Single Diodes Feature Summary

• Low profile package with built-in strain relief
• High surge capacity for robust operation
• Flammability classification 94V-0

Single Diodes Applications

• Low voltage high frequency inverters
• Free wheeling circuits
• Polarity protection

Single Diodes Procurement Notes

Verify the specific suffix 'R7G' against official Taiwan Semiconductor documentation to confirm reel packaging specifications and tape-and-reel dimensions. Ensure the component meets RoHS environmental substance directive requirements if applicable to your design constraints. Cross-reference the manufacturer's latest datasheet for any updates on mechanical data or terminal solderability standards.

Single Diodes Selection Notes

Select this component for designs requiring a 3A Schottky rectifier with a 40V reverse voltage rating. Consider its surface-mount form factor and low profile for space-constrained PCB layouts. Evaluate its suitability for high-frequency switching applications due to its majority carrier conduction characteristics and low forward voltage drop properties.

Single Diodes Part Context

The SSL34 belongs to the SSL series of general-purpose Schottky Barrier Rectifiers from Taiwan Semiconductor. This series is characterized by its surface-mount capability and reliability in various power management applications. The device represents a standard solution for efficient rectification in modern electronic systems requiring compact packaging and high performance.

Single Diodes Replacement Considerations

Consult official substitution guides for equivalent 3A 40V Schottky diodes. Verify pinout compatibility and thermal characteristics before replacing with components from other manufacturers.
