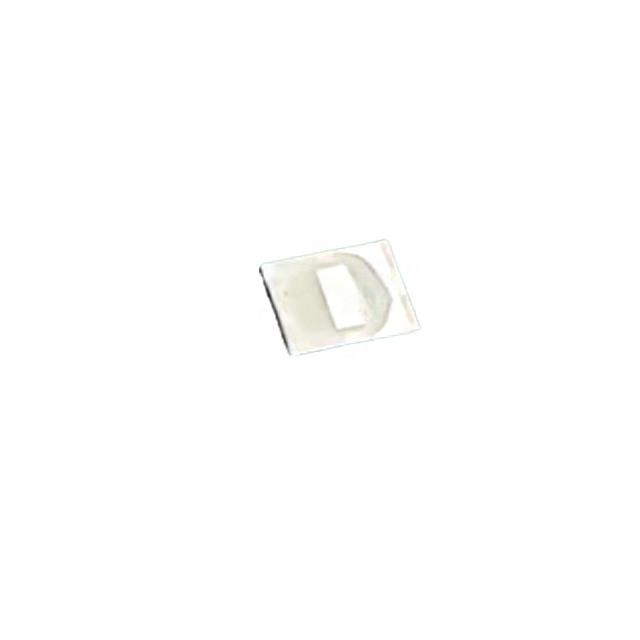

Antennas RF ST1143-00-N01-E product image

ST1143-00-N01-E

$0.99

Description：RF ANTENNA EMBEDDED ANT
Series：-
Mfr：Amphenol RF
Package：Tape & Reel (TR)

SKU:e3a947428d83 Category: RF Antennas Brand: Amphenol RF

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ST1143-00-N01-E is listed in the Antennas RF range at ChipApex. The manufacturer field lists Amphenol RF. Its product description is RF ANTENNA EMBEDDED ANT. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for ST1143-00-N01-E

Description：RF ANTENNA EMBEDDED ANT
Series：-
Mfr：Amphenol RF
Package：Tape & Reel (TR)
RF Family/Standard：Cellular
Frequency Group：Wide Band
Frequency (Center/Band)：4.225GHz, 5.545GHz, 7.13GHz, 8.185GHz
Frequency Range：3.71GHz ~ 4.74GHz, 4.76GHz ~ 6.33GHz, 6.35GHz ~ 7.91GHz, 7.93GHz ~ 8.44GHz
Antenna Type：Chip
Number of Bands：4
VSWR：-
Return Loss：-6dB
Gain：3.6dBi, 4.3dBi, 4.3dBi, 4.5dBi
Features：-
Termination：Solder
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.020" (0.50mm)
Applications：UWB
Power - Max：2 W

Antennas RF datasheet and documents for ST1143-00-N01-E

ST1143-00-N01-E
