STA302A

Overview

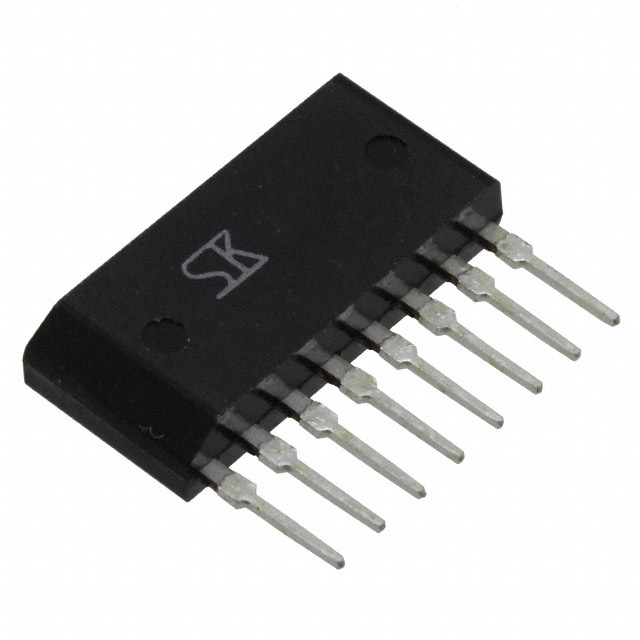

The STA302A is a PNP Darlington transistor designed for general-purpose and three-phase motor drive applications. It features an absolute maximum collector-emitter voltage (VCEO) of -50 V and a continuous collector current (IC) rating of -4 A at 25°C. The device incorporates built-in base resistors, with R1 typically at 2 kΩ and R2 at 150 Ω, simplifying circuit design. Key electrical characteristics include a DC current gain (hFE) of 1000 at IC = -3 A and VCE = -4 V, and a saturation voltage (VCE(sat)) of -2.0 V under standard test conditions. The component supports a junction temperature up to 150°C.

Feature Summary

• Integrated base resistor network reduces external component count
• High current gain suitable for direct logic interface
• Robust construction for motor drive environments

Applications

• General purpose switching
• Three-phase motor drive circuits

Procurement Notes

Verify the specific manufacturer datasheet version before implementation. Confirm that the component meets all required thermal and electrical specifications for the intended operating environment. Ensure compliance with RoHS directives if applicable to the final assembly requirements.

Selection Notes

Evaluate the thermal dissipation capabilities based on the expected load current and ambient temperature conditions. Consider the saturation voltage drop when calculating power loss in high-current scenarios. Verify compatibility with the driving logic levels due to the integrated base resistance configuration.

Part Context

This component belongs to Sanken Electric's STA series of PNP Darlington transistors. These devices are engineered for robust performance in industrial control and motor management systems. The series offers various pin configurations and packaging options to suit different board layout constraints.

Replacement Considerations

Check for equivalent PNP Darlington transistors with similar voltage ratings (-50V) and current capacity (-4A). Verify that alternative parts maintain comparable hFE values and saturation characteristics to ensure circuit stability.
