STBR3008WY

Single Diodes Overview

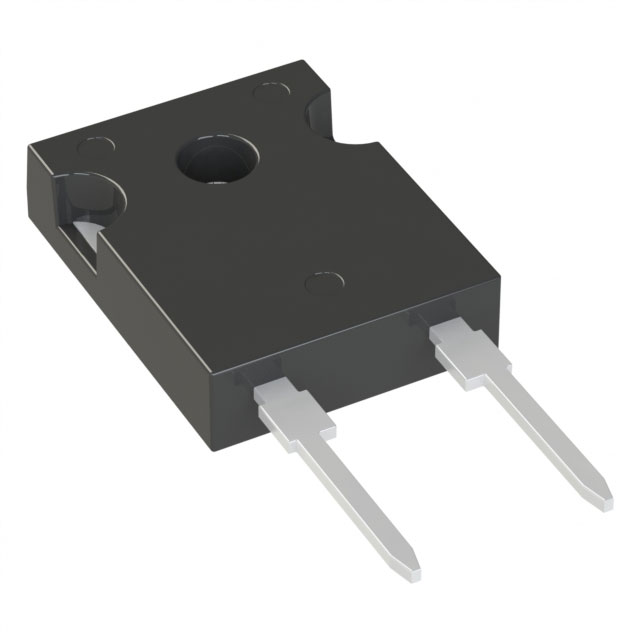

The STBR3008WY is an automotive-grade bridge rectifier diode rated for 800 V repetitive peak reverse voltage and 30 A average forward current. It operates within a junction temperature range of -40 to +175 °C, with a typical forward voltage drop of 1.0 V at 25 °C. The device utilizes DO-247 packaging and is designed for high reliability in heavy-duty applications.

Single Diodes Feature Summary

• AEC-Q101 qualified for automotive reliability
• Ultra-low conduction and reverse losses
• High junction temperature capability up to +175 °C
• PPAP capable with guaranteed VRRM across full temperature range

Single Diodes Applications

• On-board charger (OBC)
• Charging stations
• Bridge function

Single Diodes Procurement Notes

Verify the specific ordering code STBR3008WY corresponds to the DO-247 package configuration as listed in the official datasheet. Confirm environmental compliance requirements such as ECOPACK2 standards for the selected package variant before finalizing procurement specifications.

Single Diodes Selection Notes

Select this component for applications requiring robust performance under high thermal stress and heavy electrical loads. Ensure the system design accommodates the specified junction-to-case thermal resistance values for both DO-247 and D²PAK HV packages to maintain optimal operating temperatures.

Single Diodes Part Context

This part belongs to the STBR3008-Y series of automotive bridge rectifiers. It is engineered for consistent reproducibility and intrinsic ruggedness, making it suitable for demanding environments where long-term stability and low power loss are critical operational factors.

Single Diodes Replacement Considerations

Check for alternative package options like STBR3008G2Y-TR for D²PAK HV if space constraints differ. Verify that any substitute maintains equivalent AEC-Q101 qualification and thermal characteristics for direct integration.
