STPTIC-15L2C4

Overview

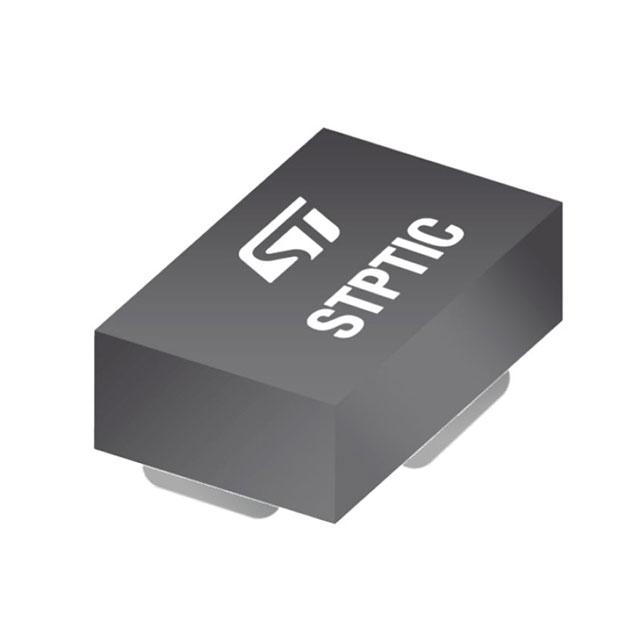

The STPTIC-15L2C4 is an RF IC analog tunable capacitor manufactured by STMicroelectronics. It operates within a frequency range of 700MHz to 2.7GHz, supporting GSM, LTE, and WCDMA applications. The component features a capacitance range of 1.35 pF to 1.65 pF with a tolerance of 10%. It is housed in a 3-WLCSP package measuring 0.75x0.72 mm, with a height of 0.32 mm. The device functions between -30°C and +85°C.

Feature Summary

• Analog tunable capacitor design for dynamic capacitance adjustment
• Surface mount mounting configuration
• RoHS compliant construction

Applications

• GSM wireless communication systems
• LTE network infrastructure
• WCDMA mobile devices

Procurement Notes

Verify the specific ordering suffix against official STMicroelectronics documentation to ensure correct package and temperature grade. Confirm RoHS compliance status through current manufacturer datasheets. Cross-reference the part number with authorized distributors to validate authenticity and avoid counterfeit components during sourcing.

Selection Notes

Select this component for RF front-end tuning where precise capacitance control is required within the 700MHz to 2.7GHz band. Ensure the application environment remains within the specified -30°C to +85°C operating temperature range. Verify that the 3-WLCSP footprint fits the PCB layout constraints.

Part Context

This part belongs to the STPTIC-15C series of tunable integrated capacitors from STMicroelectronics. These components are designed for RF applications requiring compact solutions. The STPTIC-15L2C4 specifically targets multi-standard mobile communications, offering a small form factor suitable for space-constrained portable devices.

Replacement Considerations

Consult official STMicroelectronics substitution guides for verified alternatives. Do not assume pin-compatible substitutes without verifying electrical parameters and package dimensions against the original datasheet.
