STPTIC-27L2C5

Overview

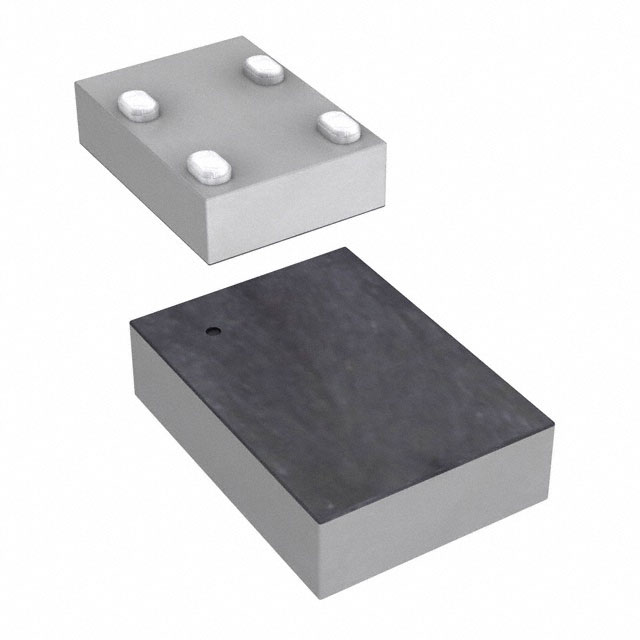

The STPTIC-27L2C5 is a Parascan tunable integrated capacitor manufactured by STMicroelectronics, designed for RF applications. It operates within the frequency range of 700 MHz to 2.7 GHz, covering GSM, LTE, and W-CDMA bands. The device provides a continuous tuning capacitance range from 0.85 pF to 2.7 pF. Packaged in a 4-FlipChip configuration, it offers excellent RF performance with low-power consumption, suitable for wireless communication circuit tuning and impedance matching.

Feature Summary

• Parascan tunable integrated capacitor technology
• Continuous capacitance tuning capability
• Low-power consumption design
• Optimized RF performance

Applications

• GSM network tuning
• LTE band matching
• W-CDMA circuit adjustment
• Wireless communication transceivers

Procurement Notes

Verify the specific package variant and tape-and-reel specifications against the official datasheet before ordering. Ensure compatibility with the target RF frequency range and required capacitance tuning span. Confirm that the 4-FlipChip form factor aligns with the PCB layout constraints. Cross-reference the manufacturer's latest documentation to confirm current production status and any potential obsolescence notices prior to finalizing procurement plans.

Selection Notes

Select this component when a compact, tunable solution is needed for frequencies between 700 MHz and 2.7 GHz. Consider its low-power profile for battery-operated devices. Evaluate the 0.85 pF to 2.7 pF tuning range against the specific impedance matching requirements of the application. Ensure the FlipChip package fits the available board space and assembly capabilities.

Part Context

This part belongs to STMicroelectronics' Parascan family of tunable capacitors, which are engineered for high-performance RF front-end modules. These components replace traditional fixed or mechanically variable capacitors, enabling dynamic impedance matching in modern wireless standards. The STPTIC series supports miniaturization while maintaining signal integrity across multiple cellular bands.

Replacement Considerations

Public confirmed substitute part numbers are not provided in the available documentation. Consult the manufacturer's official cross-reference guide or contact technical support directly for verified equivalent components.
