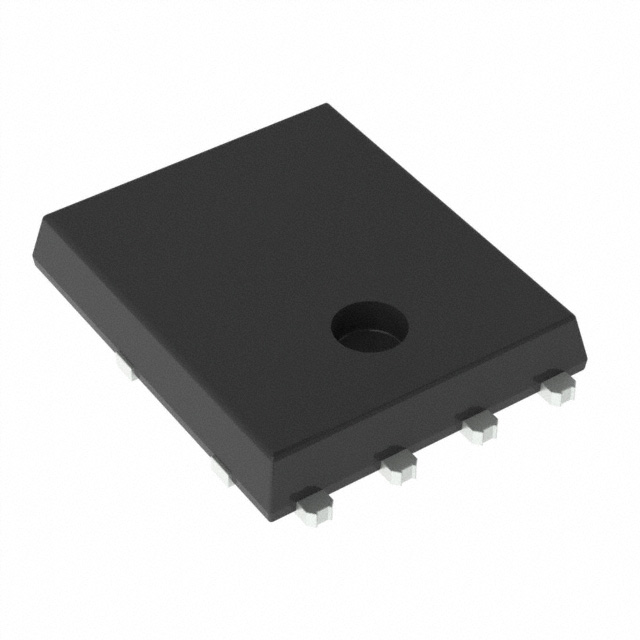

STTH8L02DDJFY-TR is listed in the Diode Arrays range at ChipApex. The manufacturer field lists STMicroelectronics. Its product description is DIODE ARRAY GP 200V 4A POWERFLAT. Review the specifications below when checking this part for your BOM.
Diode Arrays specifications for STTH8L02DDJFY-TR
- Description：DIODE ARRAY GP 200V 4A POWERFLAT
- Series：ECOPACK®2
- Mfr：STMicroelectronics
- Package：Tape & Reel (TR)
- Diode Configuration：2 Independent
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：200 V
- Current - Average Rectified (Io) (per Diode)：4A
- Voltage - Forward (Vf) (Max) @ If：1.1 V @ 8 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：40 ns
- Current - Reverse Leakage @ Vr：3 µA @ 200 V
- Operating Temperature - Junction：-40°C ~ 175°C
- Mounting Type：Surface Mount, Wettable Flank
- Package / Case：8-PowerVDFN
- Supplier Device Package：PowerFlat™ (5x6) Dual
- Grade：Automotive
- Qualification：AEC-Q101
Diode Arrays datasheet and documents for STTH8L02DDJFY-TR
Diode Arrays Overview
The STTH8L02DDJFY-TR is a dual independent diode array manufactured by STMicroelectronics, designed for high-efficiency switching applications. It features a maximum repetitive peak reverse voltage of 200 V and an average forward current rating of 4 A per element. The device utilizes a Power Flat EP package with wettable flank technology to ensure reliable solder joint inspection. It includes a typical forward voltage drop of 1.1 V at 8 A and operates within a junction temperature range of -55°C to +175°C. The component is automotive qualified under AEC-Q101 standards.
Diode Arrays Feature Summary
- Automotive grade reliability certified under AEC-Q101 standards
- Wettable flank package design for enhanced solder joint visibility
- High thermal performance supporting operation up to 175°C junction temperature
Diode Arrays Applications
- Automotive power management systems
- DC-DC converter circuits
- General purpose rectification in automotive electronics
Diode Arrays Procurement Notes
Verify the specific ordering suffix matches the required tape and reel configuration. Confirm that the wettable flank package variant is specified for automated optical inspection requirements. Ensure the AEC-Q101 qualification status aligns with the target automotive application standards before finalizing procurement orders.
Diode Arrays Selection Notes
Select this component when high current handling and automotive reliability are required. The 200 V rating suits low-voltage automotive networks. Consider the 8-PowerVDFN footprint for space-constrained designs requiring robust thermal dissipation and verified solderability through wettable flank technology.
Diode Arrays Part Context
This part belongs to STMicroelectronics' STTH series of fast recovery diodes. It serves as a discrete solution for rectification tasks where standard diodes lack sufficient speed or current capacity. The series is optimized for automotive environments demanding long-term stability and resistance to thermal stress.
Diode Arrays Replacement Considerations
Cross-reference with other STTH series variants for similar voltage and current ratings. Verify pinout compatibility and thermal characteristics when substituting with equivalent automotive-grade diode arrays from other manufacturers.
Explore related parts through Rectifiers, Diodes, Discrete Semiconductor Products, all product categories.
