SX2M11.0592D10F20TNN

Oscillators Overview

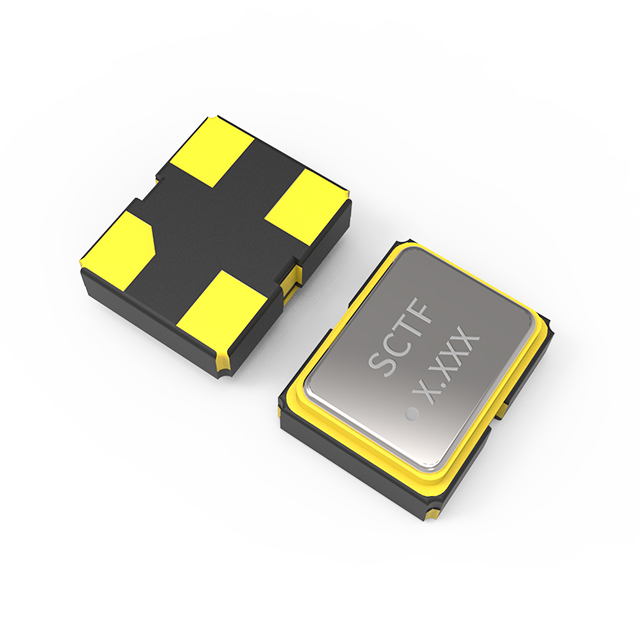

The SX2M11.0592D10F20TNN is a standard crystal oscillator manufactured by Shenzhen SCTF Electronics. It operates at a fixed frequency of 11.0592 MHz and utilizes CMOS output logic for digital signal interfacing. The device supports active control via dedicated Enable and Disable pins, allowing for power management in battery-sensitive applications. It is housed in a compact 4-SMD, No Lead package, designed for surface-mount assembly on printed circuit boards. This component provides stable clock signals for timing-critical electronic systems.

Oscillators Feature Summary

• CMOS output interface for digital compatibility
• Active enable and disable pin control
• Compact surface-mount packaging

Oscillators Applications

• Digital timing circuits
• Embedded system clocks
• Communication modules

Oscillators Procurement Notes

Verify the specific ordering suffix to ensure the correct package type and tolerance match the design requirements. Confirm that the CMOS output voltage levels are compatible with the target logic family. Check the datasheet for operating temperature range limitations relative to the application environment. Ensure the enable/disable pin configuration aligns with the system power sequencing strategy.

Oscillators Selection Notes

Select this oscillator when a precise 11.0592 MHz reference is required for serial communication or microcontroller timing. The CMOS output is suitable for low-voltage digital interfaces. Consider the 4-SMD package size for space-constrained layouts. Evaluate the need for active control features if power conservation during idle states is a priority for the final product design.

Oscillators Part Context

This component belongs to the series of standard crystal oscillators produced by Shenzhen SCTF Electronics. These devices are engineered to provide reliable clock sources for various electronic applications. The specific model indicates a standard frequency and CMOS output type, distinguishing it from LVDS or HCMOS variants within the manufacturer's portfolio.

Oscillators Replacement Considerations

Direct substitutes must match the 11.0592 MHz frequency, CMOS output, and 4-SMD No Lead package. Verify electrical parameters such as supply voltage and current consumption against the original specification. Cross-reference with other manufacturers offering standard XO components with identical pinouts and control features.
