SX3M1.250A20F30TNN

Oscillators Overview

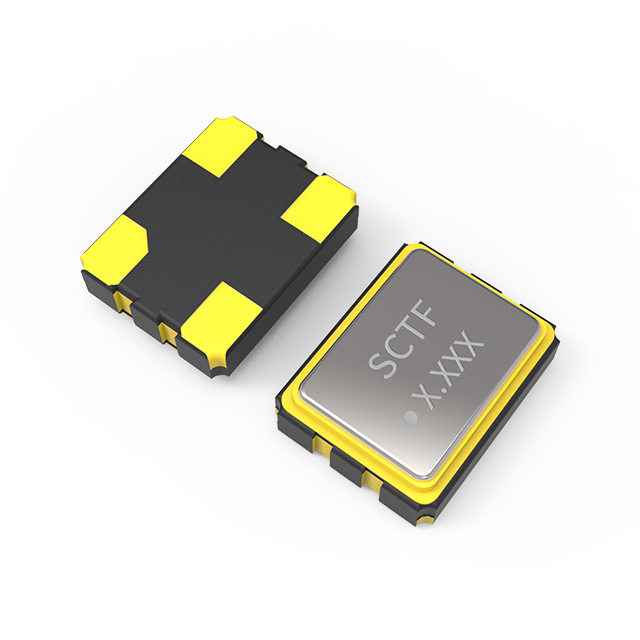

The SX3M1.250A20F30TNN is a standard CMOS crystal oscillator manufactured by Shenzhen SCTF Electronics. It operates at a frequency of 1.25 MHz and utilizes a 4-SMD, No Lead package. The device supports an enable/disable function and requires a 5V supply voltage. This component provides precise timing signals for electronic circuits.

Oscillators Feature Summary

• Provides stable clock signals via CMOS output
• Features integrated enable and disable control functionality
• Designed for compact surface-mount applications

Oscillators Applications

• General-purpose digital circuit timing
• Microcontroller system clocks
• Embedded device synchronization

Oscillators Procurement Notes

Verify the specific part number suffix to confirm the operating voltage level, as variations exist within this series. Ensure compatibility with the target 5V power supply rail. Confirm that the 4-SMD no-lead package dimensions align with the printed circuit board layout requirements before finalizing procurement orders.

Oscillators Selection Notes

Select this model when a 1.25 MHz frequency is required alongside a 5V operating voltage. Consider the enable/disable feature if power management or signal gating is necessary for the application. Compare against lower voltage variants like the B-series if the system operates on 3.3V rails instead.

Oscillators Part Context

This oscillator belongs to the SX3M series from Shenzhen SCTF Electronics, which offers various frequency and voltage options. The series is designed to meet the timing needs of modern electronic systems, providing reliable performance in standard surface-mount configurations for industrial and consumer electronics.

Oscillators Replacement Considerations

The SX3M1.250B20F30TNN serves as a direct substitute for applications requiring a 3.3V supply instead of 5V. Both parts share identical frequency, package, and functional characteristics, differing only in their specified operating voltage range.
