SX3M1.6384A20F30TNN

Oscillators Overview

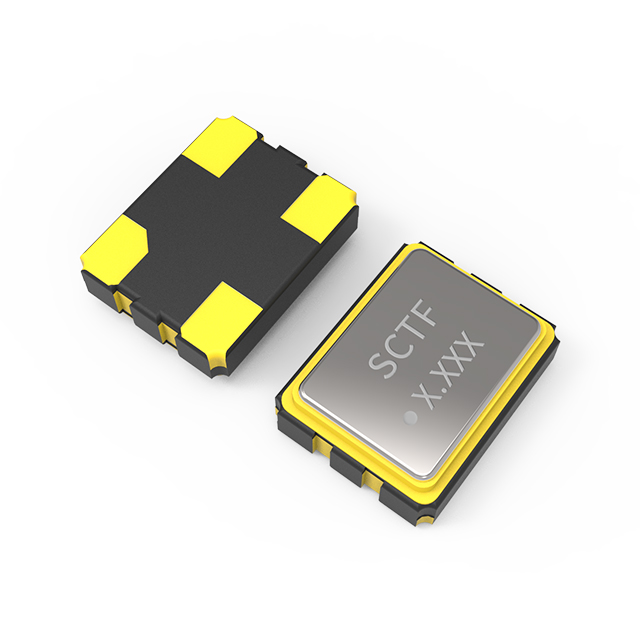

The SX3M1.6384A20F30TNN is a standard CMOS crystal oscillator manufactured by Shenzhen SCTF Electronics. It operates at a frequency of 1.6384 MHz and utilizes a 5V supply voltage. The device features an enable/disable control function for power management. It is housed in a compact 4-SMD, no lead package, suitable for surface mount applications.

Oscillators Feature Summary

• CMOS output interface
• Enable/Disable control functionality
• Surface mount packaging

Oscillators Applications

• General electronic circuits requiring clock signals
• Embedded systems
• Consumer electronics

Oscillators Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required voltage levels and frequency tolerances. Confirm that the 5V supply requirement aligns with the target system design. Check package dimensions against PCB footprint constraints before finalizing procurement decisions.

Oscillators Selection Notes

Select this component when a 1.6384 MHz clock source is required with 5V operation. Consider the enable/disable feature if power efficiency is a priority. Ensure the 4-SMD package fits the available board space. Compare specifications with alternative frequencies if the exact 1.6384 MHz value is not strictly necessary.

Oscillators Part Context

This part belongs to the SX3M series of crystal oscillators from Shenzhen SCTF Electronics. The series offers various frequencies and voltage options. The 'A' in the model number typically denotes specific electrical characteristics or tolerance levels within the product line. It is designed for reliable performance in standard commercial applications.

Oscillators Replacement Considerations

Direct substitutes may include other 1.6384 MHz CMOS oscillators with 5V operation and similar pin configurations. Verify electrical parameters such as load capacitance and drive level before substitution. Ensure the replacement part supports the enable/disable function if required by the design.
