SX3M1.8432D10F20TNN

Oscillators Overview

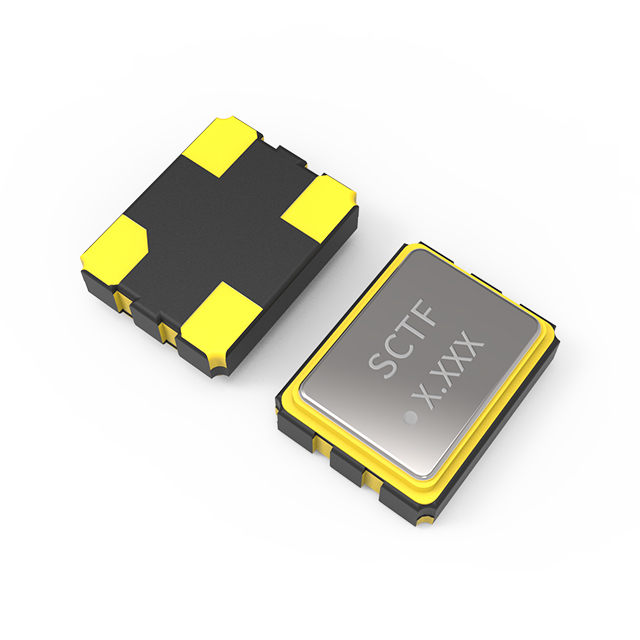

The SX3M1.8432D10F20TNN is a standard CMOS crystal oscillator manufactured by Shenzhen SCTF Electronics. It operates at a fixed frequency of 1.8432 MHz and utilizes a 4-SMD, No Lead package for surface-mount assembly. The device supports a supply voltage range of 1.62 V to 3.63 V and features an enable/disable control function for power management. This component is designed for applications requiring precise timing signals with low power consumption.

Oscillators Feature Summary

• CMOS output interface compatible with standard digital logic circuits
• Integrated enable and disable pin for active power control
• Surface-mount design optimized for automated PCB assembly processes

Oscillators Applications

• Consumer electronics timing references
• IoT device clock generation
• Industrial control system synchronization

Oscillators Procurement Notes

Verify the specific suffix 'D' against official datasheets to confirm voltage and tolerance specifications. Ensure compatibility with the target operating temperature range. Confirm package dimensions match the PCB footprint requirements. Check for RoHS compliance status if required by project regulations.

Oscillators Selection Notes

Select this model when a 1.8432 MHz reference is required in a compact SMD form factor. Consider the enable/disable feature for battery-powered designs. Compare load capacitance requirements with the host circuit. Evaluate thermal performance within the specified operating limits.

Oscillators Part Context

This part belongs to the SX3M series of standard oscillators from SCTF. The series offers various frequencies and packages. The D suffix typically denotes specific electrical characteristics or packaging variations within the product line. It serves as a fundamental timing element in electronic systems.

Oscillators Replacement Considerations

Direct substitutes include SX3M1.8432A10F20TNN and SX3M1.8432B10F20TNN from the same manufacturer. Verify pinout and electrical parameters before substitution. Cross-reference with other 1.8432 MHz XO components if SCTF parts are unavailable.
