SX7M64.000D20F30TNN

Oscillators Overview

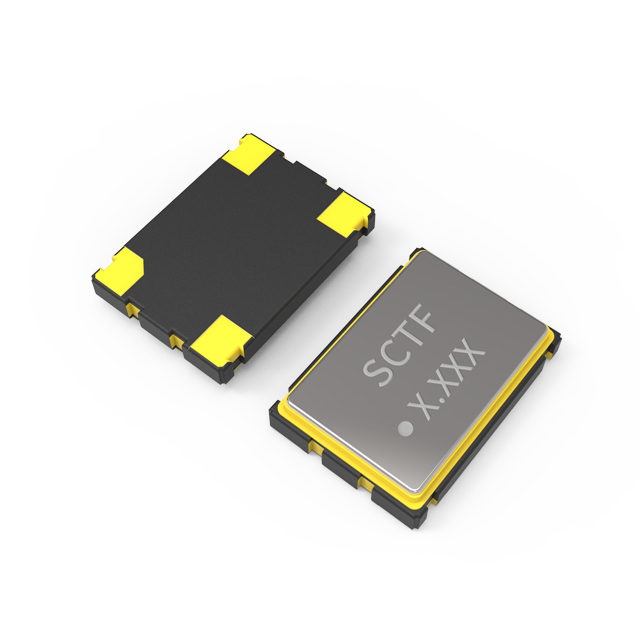

The SX7M64.000D20F30TNN is a CMOS oscillator manufactured by Shenzhen SCTF Electronics, operating at a frequency of 64 MHz. It features a standard output type and utilizes a 4-SMD, No Lead package for surface mount applications. The device supports an enable/disable control function and operates within a supply voltage range of 1.8V. It is designed to function reliably across an industrial temperature range from -40°C to +85°C.

Oscillators Feature Summary

• Integrated enable and disable control functionality for power management
• CMOS output signal compatibility with digital logic circuits
• Industrial-grade operational temperature range for robust performance

Oscillators Applications

• General-purpose clock generation in electronic systems
• Timing reference sources for digital logic interfaces
• Embedded system clock inputs requiring enable control

Oscillators Procurement Notes

Verify the specific suffix 'D' against official datasheets to confirm the exact voltage level and enable pin configuration, as ordering suffixes define critical electrical parameters. Ensure the required operating temperature range aligns with the industrial specification. Confirm package dimensions match the target PCB footprint before finalizing procurement orders.

Oscillators Selection Notes

Select this component when a 64 MHz CMOS clock source with active enable control is required. Consider the 1.8V supply requirement and 4-SMD no-lead package constraints during layout design. Evaluate thermal management needs for the -40°C to +85°C range in the final application environment.

Oscillators Part Context

This oscillator belongs to the SX7M series from Shenzhen SCTF Electronics, designed for surface-mount timing applications. The series offers various frequencies and packages, with this specific model providing a 64 MHz output in a compact 4-SMD form factor suitable for space-constrained designs.

Oscillators Replacement Considerations

Cross-reference part numbers such as SX7M64.000B20F30TNN for potential alternatives within the same manufacturer's lineup, ensuring identical frequency, package, and electrical characteristics are maintained.
