SX7V33.333B20100F30TNNS

Oscillators Overview

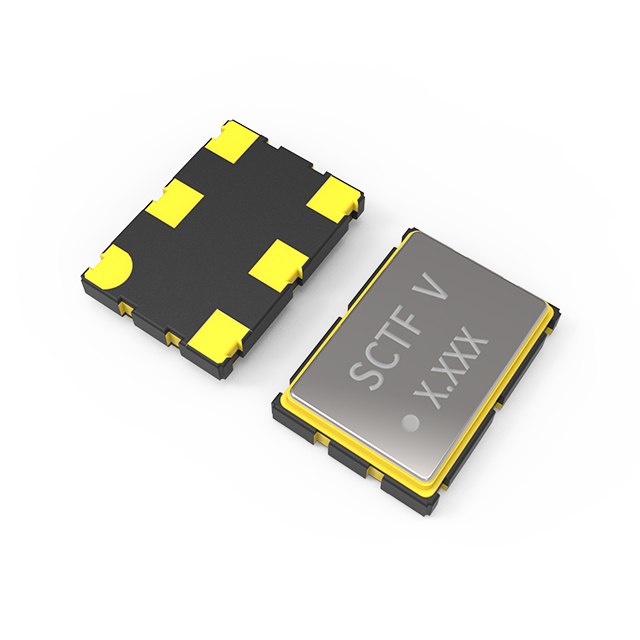

The SX7V33.333B20100F30TNNS is a Voltage-Controlled Crystal Oscillator (VCXO) manufactured by Shenzhen SCTF Electronics. It operates at a nominal frequency of 33.333 MHz and utilizes CMOS output logic. The device is designed for single-supply operation at 3.3V and features an integrated enable/disable control function. It is housed in a compact 6-SMD, No Lead surface-mount package, suitable for applications requiring precise clock generation with frequency tuning capabilities.

Oscillators Feature Summary

• Voltage-controlled crystal oscillator architecture providing tunable frequency output
• CMOS output interface compatible with standard digital logic levels
• Integrated enable and disable control pin for power management
• Surface-mount packaging optimized for automated assembly processes

Oscillators Applications

• Clock generation in communication systems
• Frequency synthesis circuits
• Data transmission equipment
• Test and measurement instruments

Oscillators Procurement Notes

Verify the specific suffix codes against the manufacturer's official documentation to ensure compatibility with required tolerance and temperature range specifications. Confirm that the 6-SMD footprint matches the target PCB design. Request the latest datasheet to validate electrical characteristics and operating conditions before finalizing procurement orders.

Oscillators Selection Notes

Select this component when a stable, voltage-tunable clock source is required for digital systems. Ensure the system design supports the 3.3V supply voltage and accommodates the CMOS output swing. Consider the thermal environment and frequency stability requirements to confirm suitability for the intended application scope.

Oscillators Part Context

This VCXO belongs to the family of precision timing components used for generating reference clocks. Unlike fixed-frequency oscillators, it allows for frequency adjustment via a control voltage, making it essential for phase-locked loops and synchronization applications in modern electronic devices.

Oscillators Replacement Considerations

Consult official cross-reference lists from Shenzhen SCTF Electronics or authorized distributors for verified substitute part numbers. Do not assume functional equivalence with generic VCXOs without verifying pinout, voltage, and frequency parameters.
