SXOA8.000B20F30TNN

Oscillators Overview

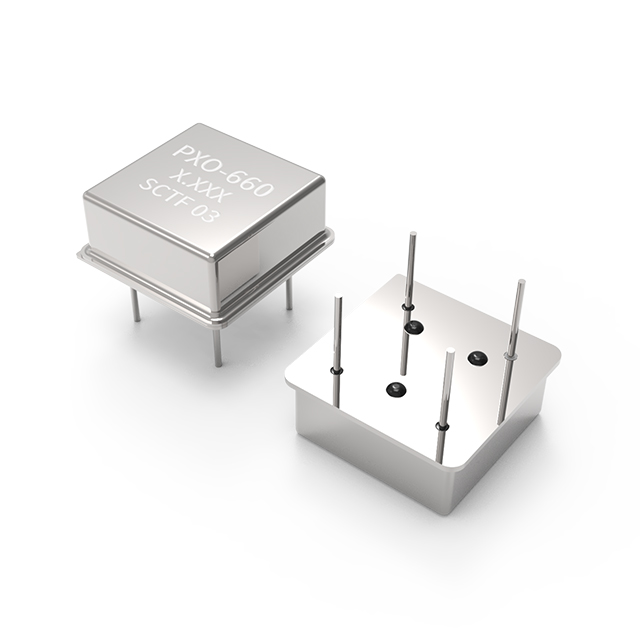

The SXOA8.000B20F30TNN is a standard CMOS oscillator manufactured by Shenzhen SCTF Electronics, operating at a nominal frequency of 8 MHz. It functions as an XO (Standard) type device with a supply voltage of 3.3V and features enable/disable control capabilities. The unit is housed in an 8-DIP package with four leads, specifically designed as a half-size metal can configuration. Frequency stability is rated at ±50ppm, ensuring reliable timing performance across an operating temperature range of -40°C to +85°C.

Oscillators Feature Summary

• Integrated enable and disable functionality for power management control
• CMOS output signal compatibility for digital logic interfaces
• Robust half-size metal can construction for environmental protection

Oscillators Applications

• Embedded system clock generation
• Communication equipment timing references
• Industrial control circuit synchronization

Oscillators Procurement Notes

Verify the specific manufacturer designation Shenzhen SCTF Electronics against your approved vendor list. Confirm that the 8-DIP half-size metal can package matches your PCB footprint requirements. Ensure the 3.3V supply voltage aligns with your system power rails. Validate the ±50ppm stability specification meets your application's timing tolerance needs before finalizing procurement orders.

Oscillators Selection Notes

Select this component when a compact, half-size metal can oscillator is required for 8 MHz applications. The CMOS output interface suits digital logic families requiring low power consumption. The wide industrial temperature range supports operation in harsh environments. The enable/disable feature provides flexibility for power-sensitive designs requiring active control over the clock signal generation.

Oscillators Part Context

This oscillator belongs to the standard XO category within Shenzhen SCTF Electronics' portfolio. It utilizes a half-size metal can package to balance size constraints with shielding effectiveness. The 8 MHz frequency is a common reference point for microprocessors and communication protocols. The CMOS output ensures direct interfacing with digital circuits without additional buffering.

Oscillators Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.
