SZC-N-0G13

Antennas RF Overview

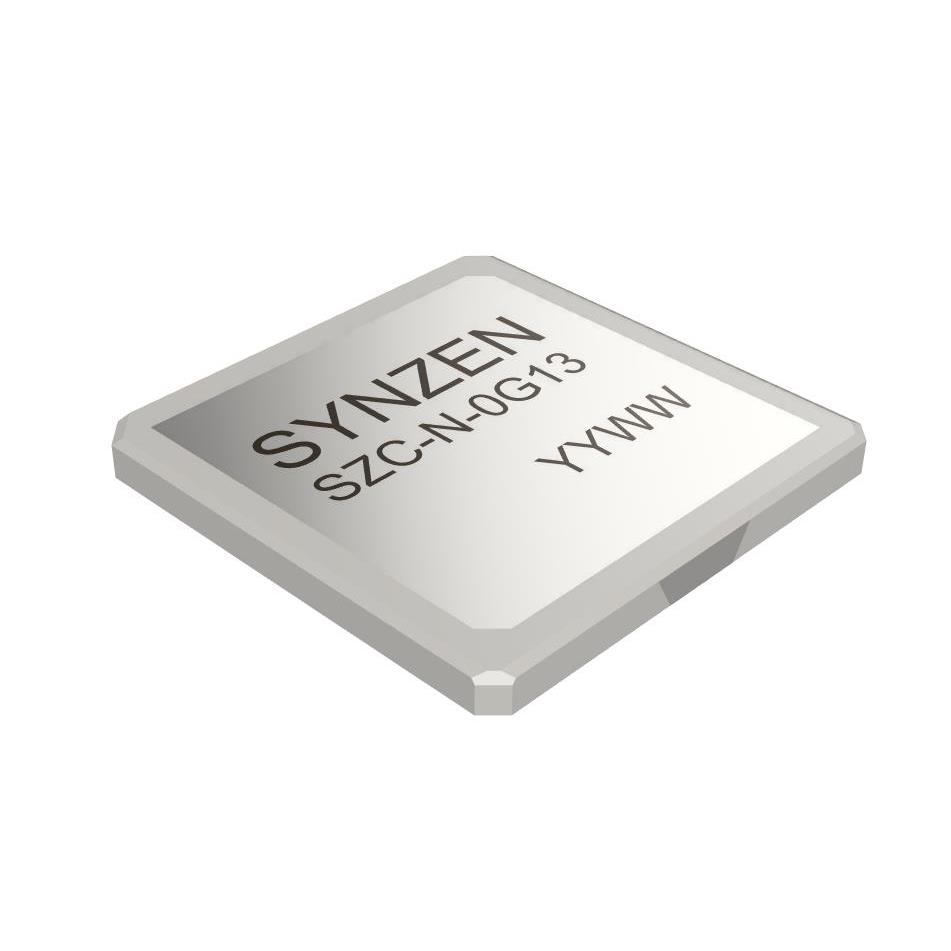

The Synzen SZC-N-0G13 is a low-profile surface-mount ceramic patch antenna designed for Global Navigation Satellite Systems (GNSS). It supports dual-band operation at center frequencies of 1.575 GHz and 1.602 GHz, covering GPS L1, Galileo, GLONASS, and other GNSS signals. The component features peak gains of 4 dBi and 2.2 dBi across its operating bands. It exhibits a Voltage Standing Wave Ratio (VSWR) of 4.5. The physical dimensions are 25.0 x 25.0 x 2.0 mm, utilizing a solder surface-mount package suitable for automated assembly.

Antennas RF Feature Summary

• Dual-band ceramic patch construction supporting multiple global navigation satellite systems
• Low-profile surface-mount design optimized for space-constrained applications
• Integrated solder termination for direct board mounting

Antennas RF Applications

• GPS L1 receiver modules
• Galileo navigation system integration
• GLONASS positioning devices
• General GNSS tracking hardware

Antennas RF Procurement Notes

Verify the specific datasheet version to confirm electrical tolerances and mechanical footprint details before finalizing the design. Ensure that the soldering profile aligns with the thermal requirements of ceramic surface-mount components. Cross-reference the pinout and grounding requirements with the target PCB layout to maintain signal integrity and impedance matching for optimal antenna performance.

Antennas RF Selection Notes

Select this model when a compact, dual-band solution is required for multi-constellation GNSS reception. The 25x25 mm form factor provides a balance between gain and size. Consider the VSWR specification relative to the RF front-end matching network. This component is appropriate for applications requiring simultaneous or selective reception of L1 band signals from various satellite networks without needing separate single-band antennas.

Antennas RF Part Context

Synzen Precision Technologies specializes in IoT antenna solutions. The SZC-N series includes various ceramic patch antennas tailored for different frequency bands and form factors. This model belongs to the GNSS-focused product line, sharing design principles with related models like the SZC-N-0G08 and SZC-N-0G06, which also target satellite navigation frequencies.

Antennas RF Replacement Considerations

The Synzen SZC-N-0G08 is a documented dual-band alternative for similar GNSS applications. Verify dimensional compatibility and electrical parameter alignment before substitution. No other public substitute part numbers are confirmed.
