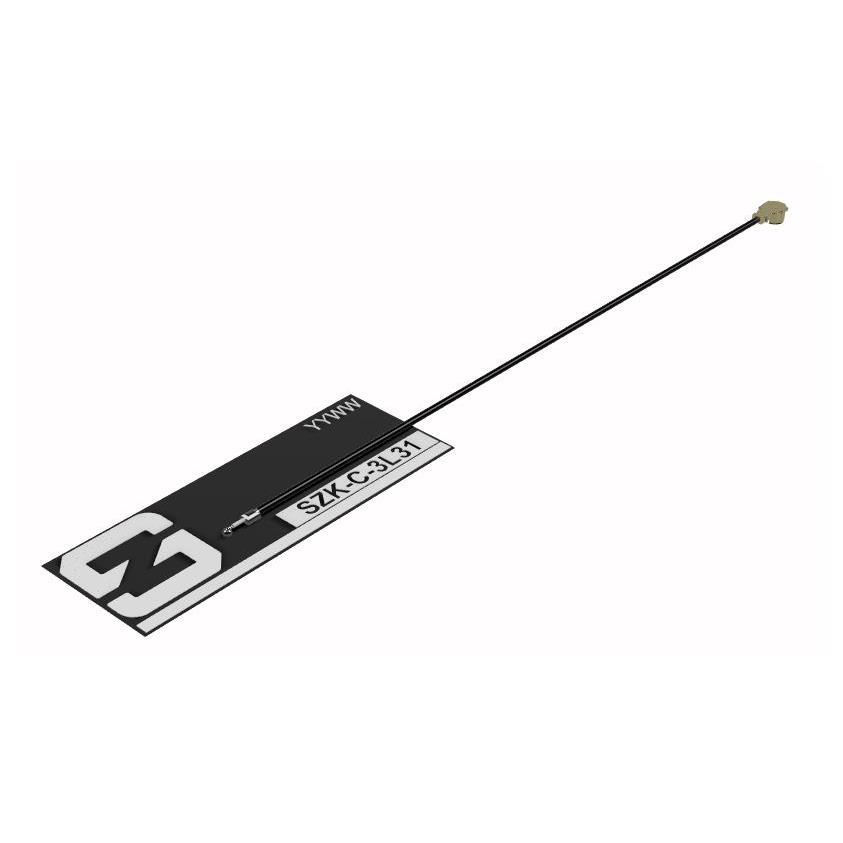

Antennas RF SZK-C-3L31-200-01 product image

SZK-C-3L31-200-01

$3.65

Description：5G ANT FLAT PATCH IPEX
Series：ALUDRA
Mfr：Synzen
Package：Bulk

SKU:e260d861673d Category: RF Antennas Brand: Synzen

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SZK-C-3L31-200-01 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Synzen. Its product description is 5G ANT FLAT PATCH IPEX. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for SZK-C-3L31-200-01

Description：5G ANT FLAT PATCH IPEX
Series：ALUDRA
Mfr：Synzen
Package：Bulk
RF Family/Standard：Cellular
Frequency Group：Wide Band
Frequency (Center/Band)：657.5MHz, 748MHz, 892MHz, 1.94GHz, 2.35GHz, 2.595GHz, 3.55GHz
Frequency Range：617MHz ~ 960MHz, 1.427GHz ~ 1.66GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz
Antenna Type：Flat Patch
Number of Bands：7
VSWR：4, 2, 3, 2, 2.5, 2.2
Return Loss：-5db, -8dB, -7dB, -10dB, -7dB, -8dB
Gain：4.2dBi, 4.7dBi, 4.44dBi, 4.83dBi, 4.69dBi, 5.3dBi
Features：Cable - 200mm
Termination：IPEX MHF1, U.FL (UMCC)
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Adhesive
Height (Max)：0.008" (0.20mm)
Applications：5G, 4G, 2G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, IMT, LTE, PCS, UMTS, WCDMA
Power - Max：5 W

Antennas RF datasheet and documents for SZK-C-3L31-200-01

SZK-C-3L31-200-01
