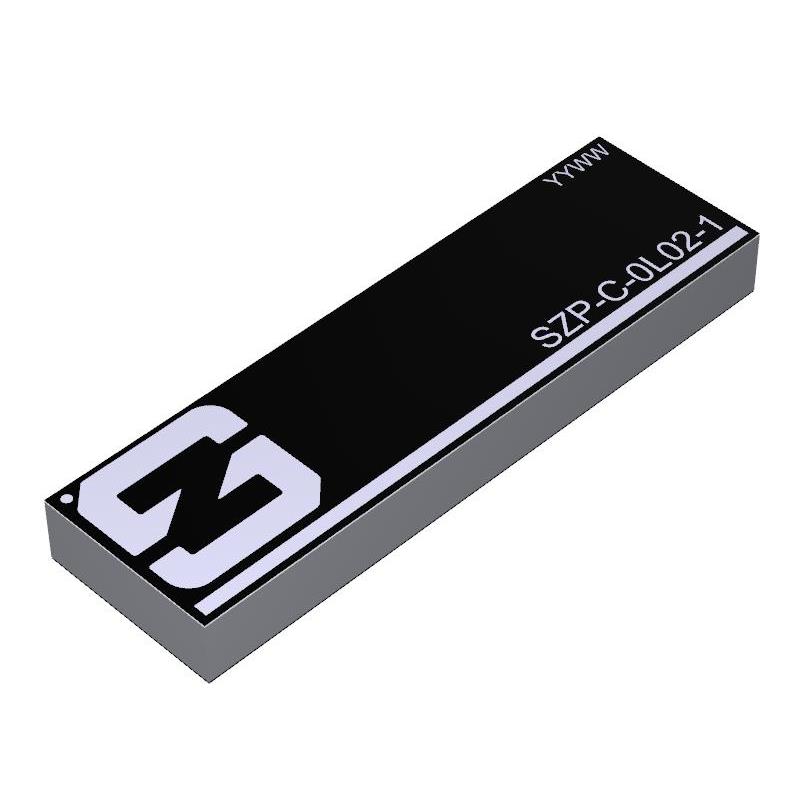

Antennas RF SZP-C-0L02 product image

SZP-C-0L02

$3.23

Description：4GLTE ANT 698-2690MHZ SMD CHIP
Series：OPALA
Mfr：Synzen
Package：Tape & Reel (TR)

SKU:f6e2d45e3f0c Category: RF Antennas Brand: Synzen

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SZP-C-0L02 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Synzen. Its product description is 4GLTE ANT 698-2690MHZ SMD CHIP. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for SZP-C-0L02

Description：4GLTE ANT 698-2690MHZ SMD CHIP
Series：OPALA
Mfr：Synzen
Package：Tape & Reel (TR)
RF Family/Standard：Cellular
Frequency Group：Wide Band
Frequency (Center/Band)：829MHz, 1.94GHz, 2.35GHz, 2.595GHz
Frequency Range：698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz
Antenna Type：Chip
Number of Bands：5
VSWR：3.1, 2.9, 3.25, 3.5
Return Loss：-6dB, -7.5dB, -6dB, -5dB
Gain：1.5dBi, 3.4dBi, 2.7dBi, 1.5dBi
Features：-
Termination：Solder
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.130" (3.30mm)
Applications：3G, 4G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, IMT, LTE, PCS, UMTS, WCDMA
Power - Max：5 W

Antennas RF datasheet and documents for SZP-C-0L02

SZP-C-0L02
