T13Q100F3C3

Field Programmable Gate Array Overview

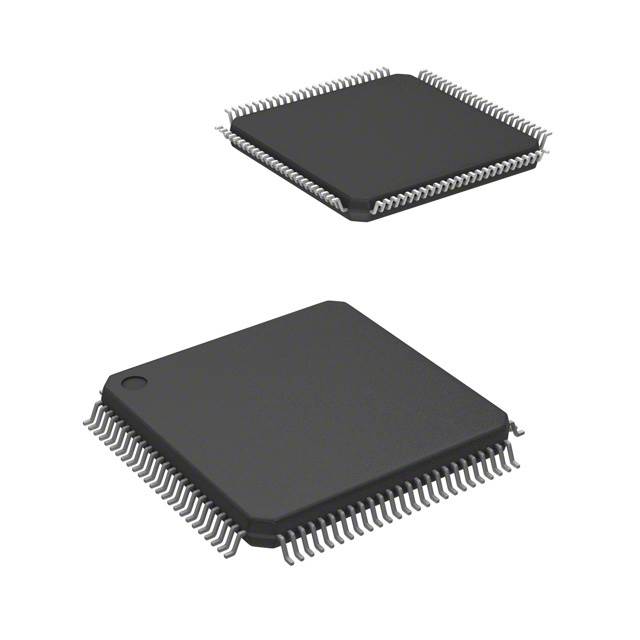

The Efinix T13Q100F3C3 is a Field Programmable Gate Array (FPGA) belonging to the Trion series. It features a 100-pin VQFP package and provides 68 general-purpose I/O pins. The device supports system-in-programmability with endurance of at least 10,000 program/erase cycles. It operates within an internal supply voltage range of 3V to 3.6V and functions across a commercial temperature range of 0°C to 70°C.

Field Programmable Gate Array Feature Summary

• Supports in-system programmability for flexible design updates
• Integrates embedded non-volatile configuration memory
• Provides high-density I/O capabilities for complex interconnects

Field Programmable Gate Array Applications

• Industrial control systems requiring reliable logic processing
• Consumer electronics interfaces utilizing standard packaging
• Communication equipment signal routing applications

Field Programmable Gate Array Procurement Notes

Verify component authenticity through authorized distributors or original manufacturer channels. Confirm package integrity and pin alignment prior to integration. Ensure storage conditions comply with moisture sensitivity level requirements to prevent damage during assembly processes.

Field Programmable Gate Array Selection Notes

Evaluate pin count compatibility against target circuit board layout constraints. Assess power consumption profiles relative to available thermal management solutions. Compare performance metrics with alternative FPGA families to ensure optimal cost-performance balance for specific application requirements.

Field Programmable Gate Array Part Context

This component belongs to the Efinix Trion FPGA family, designed for mid-range complexity applications. It serves as a direct hardware replacement for obsolete AMD XC3S200A devices in existing designs, maintaining functional equivalence while offering modern fabrication advantages and improved availability.

Field Programmable Gate Array Replacement Considerations

Publicly confirmed substitute part numbers include AMD XC3S200A-5VQG100C.
