Product Detailed Parameters
- Description：THYRISTOR TO92 T&R 2K
- Series：-
- Mfr：Diodes Incorporated
- Package：Tape & Reel (TR),Cut Tape (CT)
- Voltage - Off State：-
- Voltage - Gate Trigger (Vgt) (Max)：-
- Current - Gate Trigger (Igt) (Max)：-
- Current - Hold (Ih) (Max)：-
- Current - Non Rep. Surge 50, 60Hz (Itsm)：-
- SCR Type：-
- Operating Temperature：-
- Grade：-
- Qualification：-
- Mounting Type：-
- Package / Case：-
- Supplier Device Package：-
- Voltage - On State (Vtm) (Max)：-
- Current - On State (It (AV)) (Max)：-
- Current - On State (It (RMS)) (Max)：-
- Current - Off State (Max)：-
Download product information
Overview

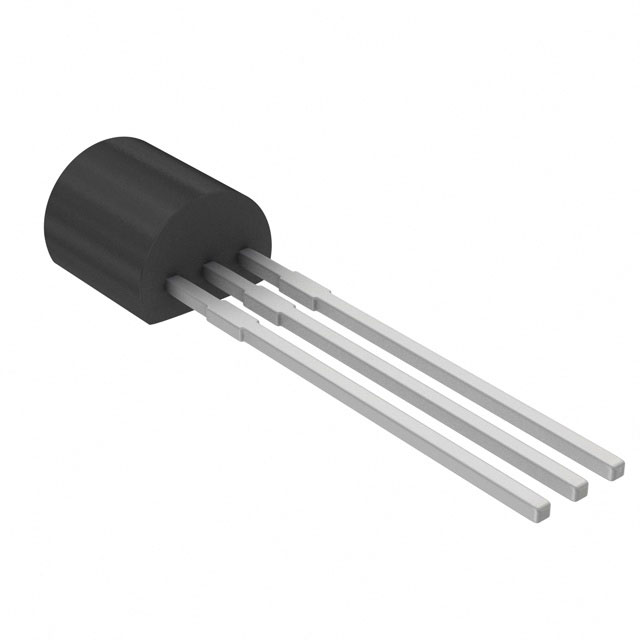

The T1M10T800A is a silicon bidirectional thyristor (Triac) manufactured by Diodes Incorporated, designed for general-purpose AC switching applications. It features an RMS on-state current of 1 A and a peak repetitive off-state voltage rating of 800 V. The device utilizes a passivated die structure to ensure reliability and uniformity across operating conditions. It supports three-quadrant triggering with low-level gate trigger characteristics, making it compatible with logic control circuits. The component operates within a junction temperature range of -40°C to +125°C and is housed in a TO-92 package.
Feature Summary
- Passivated die construction for enhanced reliability and parameter uniformity
- Three-quadrant triggering capability with low-level gate sensitivity
- Logic control compatibility due to reduced gate trigger requirements
- High false turn-on voltage immunity up to 600 V/µs
Applications
- General purpose motor control systems
- Small load switching in washing machines
- Solenoid driver circuits
- Digital control drivers
Procurement Notes
Verify the specific manufacturer origin, as the datasheet references LSC while the brand is Diodes Incorporated. Confirm RoHS compliance status and AEC-Q101 Rev_C qualification details directly from the supplier before finalizing procurement orders.
Selection Notes
Select this component for low-power AC switching tasks requiring 800 V blocking capability. Ensure the design accommodates the 1 A RMS current limit at a case temperature of 110°C. Verify that the application environment remains within the specified -40°C to +125°C junction temperature range.
Part Context
This Triac belongs to the family of silicon bidirectional thyristors rated for 1 Ampere RMS and 800 Volts. It serves as a compact switching solution for consumer electronics and industrial control modules where small form factor packages like TO-92 are preferred over larger surface-mount alternatives.
Replacement Considerations
Check for direct pin-compatible substitutes within the same 1 A / 800 V specification class. Verify that any replacement maintains the TO-92 package style and meets the required thermal resistance values for your specific heat dissipation needs.
FAQ
What is the maximum rate of rise of off-stage voltage (dv/dt) for the T1M10T800A?
The critical rate of rise of off-stage voltage is rated at 600 V/µs when measured at a junction temperature of 125°C.
Does the T1M10T800A support automotive applications?
Yes, the device is qualified to AEC-Q101 Rev_C standards, indicating suitability for automotive environments.
What is the peak non-repetitive surge current rating?
The peak non-repetitive surge current is 13.7 A for one full cycle at 60 Hz with a junction temperature of 25°C.
