T20W80I4

Field Programmable Gate Array Overview

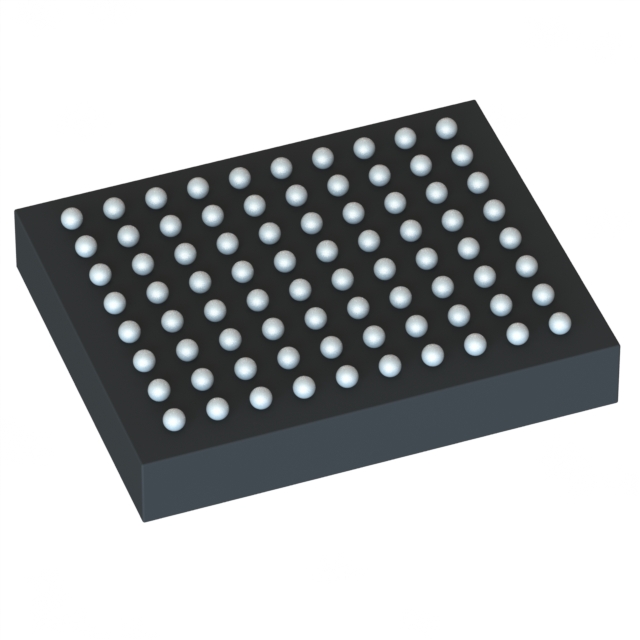

The Efinix T20W80I4 is a Trion FPGA featuring 19,728 logic elements and 1,044.48 kbits of embedded RAM organized into 204 blocks of 5 Kb each. It includes 36 multipliers and three PLLs within an 80-ball WLCSP package measuring 3.6x4.5 mm with a 0.4 mm pitch. The device supports industrial temperature operation (-40°C to 100°C) at speed grade 4 or 4L. Key interfaces include one MIPI TX pair, one MIPI RX pair, and 33 GPIOs.

Field Programmable Gate Array Feature Summary

• Supports MIPI CSI-2 and D-PHY standards for image sensor connectivity
• Integrates DDR DRAM controller and PHY for high-speed memory access
• Provides LVDS I/O capabilities for differential signaling applications

Field Programmable Gate Array Applications

• Image processing systems requiring MIPI interface integration
• Embedded vision applications utilizing DDR memory controllers
• Industrial control units operating in extended temperature ranges

Field Programmable Gate Array Procurement Notes

Verify the specific speed grade suffix (4 or 4L) required for timing closure. Confirm the WLCSP package dimensions match the PCB footprint design. Ensure the industrial temperature rating aligns with the operational environment requirements before finalizing the order.

Field Programmable Gate Array Selection Notes

Select this model when 19,728 LEs are sufficient for the design complexity. Consider the 80-ball WLCSP package constraints for board space limitations. Verify that the MIPI and DDR resources meet the peripheral connectivity needs without requiring external bridge chips.

Field Programmable Gate Array Part Context

This component belongs to the Efinix Trion family, which targets low-power, cost-sensitive applications. The T20 variant offers a balance between logic density and power consumption. It serves as a scalable option within the series alongside larger devices like the T35 and smaller ones like the T8.

Field Programmable Gate Array Replacement Considerations

Direct substitutes within the same package and pinout are limited. The T20W80I4/4L is the alternative speed grade version. Cross-family replacements require re-evaluation of logic capacity and I/O compatibility.
