T2600N16TOFVTXPSA1
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：STD THYR/DIODEN DISC BG-T10035-1
- Series：-
- Mfr：Infineon Technologies
- Package：Tray
- Structure：Single
- Number of SCRs, Diodes：1 SCR
- Voltage - Off State：1.8 kV
- Current - On State (It (AV)) (Max)：2610 A
- Current - On State (It (RMS)) (Max)：4100 A
- Current - Non Rep. Surge 50, 60Hz (Itsm)：44000A @ 50Hz
- Operating Temperature：135°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：TO-200AD
- Voltage - Gate Trigger (Vgt) (Max)：2 V
- Current - Gate Trigger (Igt) (Max)：250 mA
- Current - Hold (Ih) (Max)：300 mA
- Grade：-
- Qualification：-
Download product information
Overview

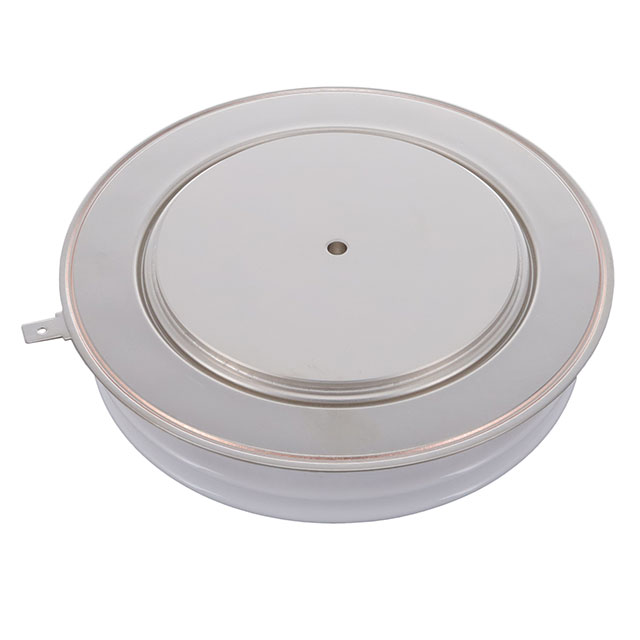

The T2600N16TOFVTXPSA1 is an Electrical Triggered Phase Control Thyristor disc manufactured by Infineon Technologies. It features a 1600 V repetitive peak reverse voltage and supports a maximum average on-state current of 2610 A at 180° electrical conduction. The device withstands a non-repetitive surge current of 36000 A for 10 ms. Key thermal parameters include a junction-to-case thermal resistance of 12.5 K/kW and a maximum junction temperature of 135°C. The package consists of a 100 mm diameter disc with a 26 mm height, utilizing ceramic insulation.
Feature Summary
- Electrical triggering mechanism designed for phase control applications
- High surge current capability for robust operation under transient conditions
- Disc configuration with ceramic insulation for high-voltage isolation
Applications
- Phase control thyristor circuits
- High power industrial rectification systems
- HVDC converter valves
Procurement Notes
Verify the complete part number including the XPSA1 suffix to ensure correct RoHS compliance and specific manufacturing lot details. Confirm that the required clamping force falls within the specified range of 30 to 65 kN for proper mechanical assembly. Cross-reference the datasheet version to ensure compatibility with current design specifications.
Selection Notes
Select this component when a 1600 V rating and 2610 A continuous current capacity are required for phase control applications. Ensure the cooling system can maintain the junction temperature below 135°C given the 12.5 K/kW thermal resistance. Verify that the gate drive circuitry aligns with the electrical triggering requirements of the ETT technology.
Part Context
This part belongs to the T2600N16 series of electrical triggered thyristors from Infineon. It shares the same core die and electrical characteristics as the T2600N16TOF-VT, with the XPSA1 suffix indicating specific packaging or compliance variations. It is distinct from higher voltage variants like the T2160N26 series which operate at 2600 V.
Replacement Considerations
The T2600N16TOF-VT is a confirmed equivalent part number with identical electrical specifications. Verify that any substitute maintains the same disc dimensions (100mm dia) and thermal resistance values to ensure mechanical and thermal compatibility in existing assemblies.
