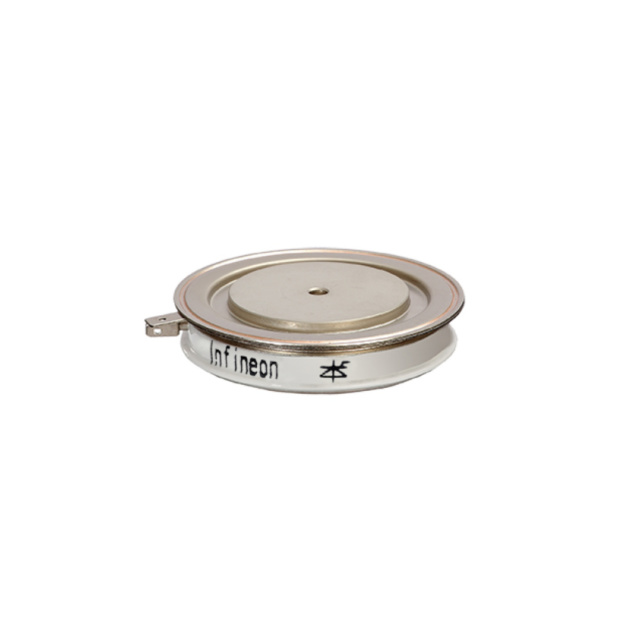

T560N16TOFXPSA1

$103.55

Description：SCR MODULE 1800V 809A DO200AA
Series：-

SKU:a5594c7e6773 Category: SCRs - Modules Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：SCR MODULE 1800V 809A DO200AA
Series：-
Mfr：Infineon Technologies
Package：Tray
Structure：Single
Number of SCRs, Diodes：1 SCR
Voltage - Off State：1.8 kV
Current - On State (It (AV)) (Max)：559 A
Current - On State (It (RMS)) (Max)：809 A
Current - Non Rep. Surge 50, 60Hz (Itsm)：8000A @ 50Hz
Operating Temperature：-40°C ~ 125°C
Mounting Type：Clamp On
Package / Case：DO-200AA, A-PUK
Voltage - Gate Trigger (Vgt) (Max)：2 V
Current - Gate Trigger (Igt) (Max)：200 mA
Current - Hold (Ih) (Max)：300 mA
Grade：-
Qualification：-

Download product information

T560N16TOFXPSA1

Overview

The Infineon T560N16TOFXPSA1 is a single-phase controlled thyristor (PCT) module designed for high-power phase control applications. It features a repetitive peak reverse voltage of 1600 V and an average on-state current rating of 559 A at 180 degrees electrical conduction. The device supports a non-repetitive surge current of 8 kA and operates within a junction temperature range of -40°C to +125°C. Key electrical parameters include a maximum gate trigger current of 200 mA, a maximum gate trigger voltage of 2 V, and a peak on-state voltage of 1.92 V. The component utilizes a BG-T4814K0 disc package with bolt mounting.

Feature Summary

Engineered as an electrically triggered phase control thyristor for robust power management
Utilizes a ceramic-insulated disc package structure for secure bolt mounting installation
Designed for high thermal stability with specified junction temperature limits up to 125°C

Applications

High-power industrial phase control systems
Resistive and inductive load regulation circuits
DC to AC inversion stages requiring precise current control

Procurement Notes

Verify the exact ordering suffix against official Infineon documentation to ensure correct configuration. Confirm that the BG-T4814K0 package dimensions match your mechanical constraints. Cross-reference the specific revision level with the manufacturer's latest datasheet to guarantee compatibility with your system design requirements before finalizing procurement.

Selection Notes

Select this component when a 1600 V blocking capability and 559 A continuous current handling are required. Ensure the driving circuit can supply the specified 200 mA gate trigger current. Verify that the thermal management solution maintains the junction temperature below the 125°C maximum limit under full load conditions to ensure reliable long-term operation.

Part Context

This part belongs to the T560N series of high-power thyristor modules from Infineon Technologies. The series is characterized by silicon technology and is intended for demanding power electronics applications. The TOF designation indicates the specific packaging and terminal configuration used for this family of devices.
