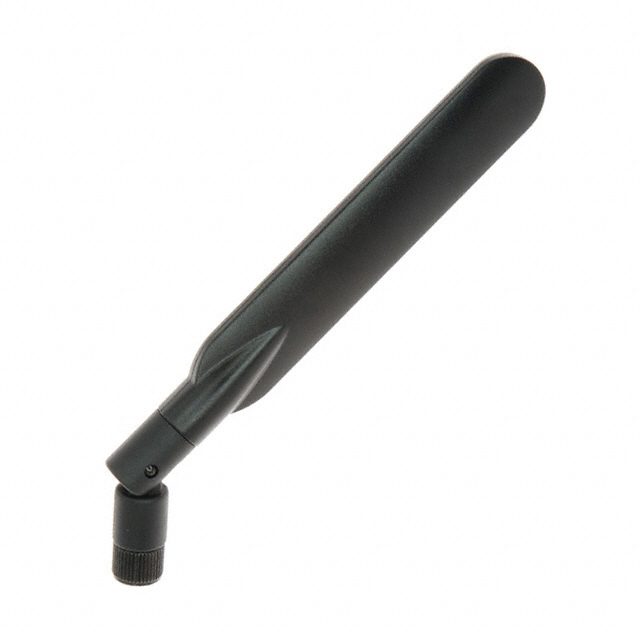

T6140AM-AGDPU-S is listed in the Antennas RF range at ChipApex. The manufacturer field lists Nearson Inc.. Its product description is RF ANT 850MHZ/900MHZ WHIP TILT. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for T6140AM-AGDPU-S
- Description：RF ANT 850MHZ/900MHZ WHIP TILT
- Series：-
- Mfr：Nearson Inc.
- Package：Bulk
- RF Family/Standard：Cellular, General ISM
- Frequency Group：UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz
- Frequency Range：824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
- Antenna Type：Whip, Tilt
- Number of Bands：5
- VSWR：2, 3
- Return Loss：-
- Gain：2dBi
- Features：-
- Termination：SMA Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：6.283" (159.60mm)
- Applications：AMPS, DCS, GSM, PCS, UMTS
- Power - Max：-
Antennas RF datasheet and documents for T6140AM-AGDPU-S
Antennas RF Overview
The T6140AM-AGDPU-S is a multi-band rubber duck whip antenna manufactured by Nearson Inc. It operates across two frequency bands: 850 MHz and 900 MHz. The component features an SMA connector interface and a tilt design for flexible orientation. It is classified as a lead-free RF antenna suitable for general wireless communication applications requiring dual-band coverage.
Antennas RF Feature Summary
- Multi-band operation supporting 850 MHz and 900 MHz frequencies
- Rubber duck whip construction with tilt capability
- SMA connector interface for secure attachment
Antennas RF Applications
- General RF antenna systems
- Wireless communication devices
- Dual-band signal transmission setups
Antennas RF Procurement Notes
Verify the exact part number T6140AM-AGDPU-S against official Nearson Inc. documentation to ensure compatibility. Confirm that the SMA connector type and dual-band specifications match your system requirements. Check for RoHS compliance status if environmental regulations apply. Ensure the tilt mechanism meets mechanical mounting constraints.
Antennas RF Selection Notes
Select this model when dual-band performance at 850 MHz and 900 MHz is required. The rubber duck form factor provides durability and omnidirectional radiation patterns. The tilt feature allows for optimal signal alignment in constrained spaces. Verify that the SMA interface matches existing equipment connectors before procurement.
Antennas RF Part Context
This antenna belongs to Nearson Inc.'s line of RF whip antennas designed for versatile deployment. The T6140AM series offers multi-band capabilities, distinguishing it from single-frequency alternatives. The AGDPU suffix likely denotes specific packaging or configuration details within the product family.
Antennas RF Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Consult Nearson Inc. directly for equivalent models or cross-reference compatible antennas with matching SMA interfaces and dual-band specifications.
