T614AH-2.4/4.9/5.X-S

Antennas RF Overview

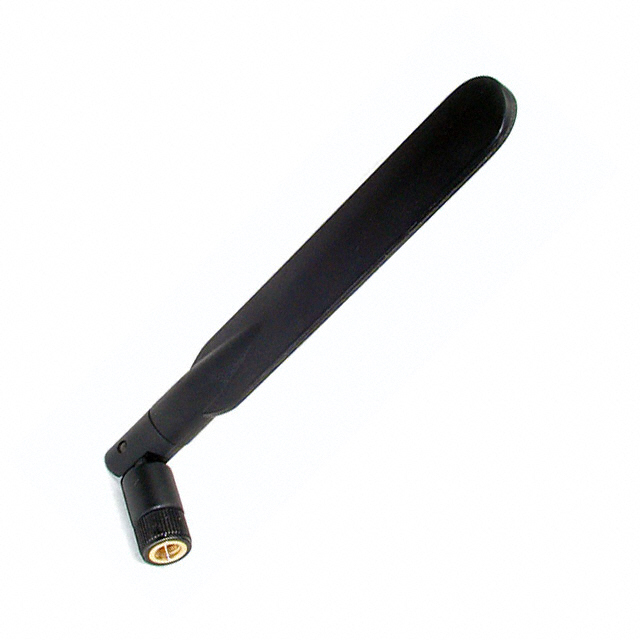

The T614AH-2.4/4.9/5.X-S is an RF antenna manufactured by Nearson Inc., designed for multi-band wireless communication applications. It features a whip-style construction with tilt capability and utilizes an RP-SMA male connector for mounting. The component operates across UHF and SHF frequency groups, specifically supporting bands at 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.35GHz, and 5.725GHz ~ 5.85GHz. Center frequencies include 2.4GHz, 4.9GHz, 5.2GHz, and 5.8GHz. The unit is RoHS compliant and lead-free.

Antennas RF Feature Summary

• Multi-band operation covering 2.4GHz, 4.9GHz, and 5.x GHz ranges
• Whip design with adjustable tilt functionality
• RP-SMA male connector interface for secure mounting

Antennas RF Applications

• Wireless local area network (WLAN) systems
• Industrial telemetry and remote monitoring
• Consumer electronics requiring dual-band connectivity

Antennas RF Procurement Notes

Verify the specific suffix configuration against the target application requirements to ensure compatibility with existing circuit interfaces. Confirm that the RP-SMA male connector matches the host device's jack type. Check RoHS compliance documentation for regulatory adherence in restricted substance zones. Validate physical dimensions and tilt range specifications against enclosure constraints before finalizing procurement orders.

Antennas RF Selection Notes

Select this component when simultaneous support for 2.4GHz and 5GHz ISM bands is required within a single compact form factor. The tilt feature allows for optimized polarization alignment in space-constrained installations. Ensure the host PCB or cable assembly accommodates the RP-SMA male interface without mechanical interference. Consider environmental ratings if deployment involves exposure to moisture or extreme temperatures.

Antennas RF Part Context

This model belongs to Nearson Inc.'s RF antenna portfolio, focusing on versatile wireless connectivity solutions. The part number structure indicates specific frequency band support and connector type variations within the product line. It serves as a direct replacement for legacy antennas lacking multi-band efficiency or adjustable orientation capabilities in modern wireless modules.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify pinout and impedance matching carefully when considering alternative vendors. Ensure mechanical footprint compatibility if substituting with similar whip-style antennas from other manufacturers.
