Product Detailed Parameters
- Description：7-IN-1 MIMO IP68 PUCK ANTENNA X1
- Series：TANGO 57
- Mfr：Siretta Ltd
- Package：Bulk
- RF Family/Standard：Cellular, Navigation, WiFi
- Frequency Group：Wide Band
- Frequency (Center/Band)：3.3085GHz
- Frequency Range：617MHz ~ 6GHz
- Antenna Type：Dome
- Number of Bands：1
- VSWR：-
- Return Loss：-
- Gain：6.68dBi
- Features：Cable - 1m
- Termination：RP-SMA Male, SMA Male
- Ingress Protection：IP68
- Grade：-
- Qualification：-
- Mounting Type：Screw Mount, Through Hole
- Height (Max)：1.929" (49.00mm)
- Applications：3G, 4G, 5G, GNSS, GPS, LTE, Wi-Fi
- Power - Max：25 W
Download product information
Overview

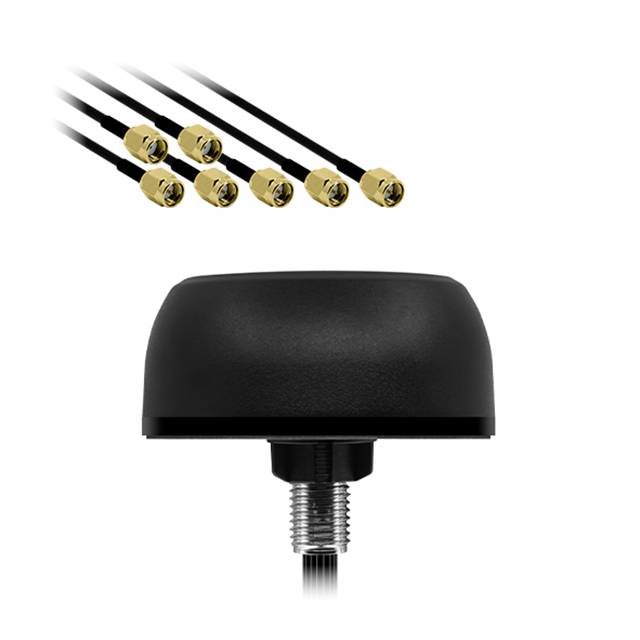

The Siretta TANGO57/MIMO/421/1M/SMAM/RP-SMAM is a multi-band MIMO antenna system designed for global cellular, Wi-Fi, and GPS applications. It integrates seven distinct antennas within a single IP68-rated puck housing: four SMA male connectors for 5G bands, two SMA male connectors for 2G/3G/4G bands, and one RP-SMA connector for Wi-Fi. A dedicated SMA male port provides GPS functionality. The unit includes a 1-meter cable assembly.
Feature Summary
- Integrates seven antennas into a single IP68-rated puck enclosure
- Supports simultaneous operation across cellular, Wi-Fi, and GPS protocols
- Features multiple SMA male and RP-SMA connector options
Applications
- Global cellular connectivity (2G, 3G, 4G, 5G)
- Wi-Fi network integration
- GPS positioning systems
Procurement Notes
Verify the specific connector configuration against project requirements to ensure compatibility with host device interfaces. Confirm that the integrated 1-meter cable length meets spatial constraints. Ensure the IP68 rating aligns with the intended environmental exposure conditions for the installation site.
Selection Notes
Select this model when a consolidated solution for multiple wireless protocols is required in a compact form factor. The integrated design reduces mounting complexity compared to discrete antennas. Verify that the host equipment supports the necessary MIMO configurations for the included cellular bands.
Part Context
This component belongs to the Tango 57 series of high-performance MIMO antennas by Siretta. The series focuses on providing comprehensive coverage for global cellular frequencies ranging from 617MHz to 6000MHz within robust, weather-resistant enclosures suitable for diverse deployment scenarios.
Replacement Considerations
The variant TANGO57/MIMO/221/1M/SMAM/RP-SMAM serves as a related alternative within the same product family, offering similar multi-protocol capabilities.
