TAS2562YFPT

Overview

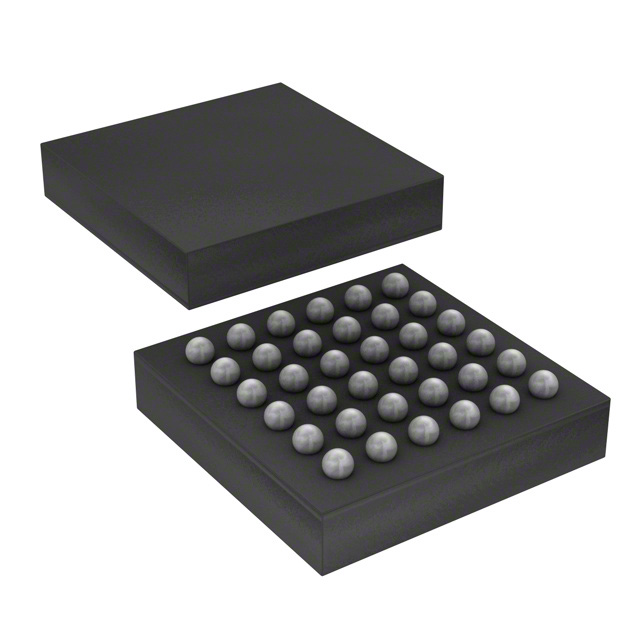

The TAS2562YFPT is a Class-D digital input smart audio amplifier manufactured by Texas Instruments. It delivers 6.1 W of output power into a 4-ohm load with a total harmonic distortion plus noise of 0.01%. The device operates within a supply voltage range of 1.65 V to 1.95 V and functions at temperatures between -40°C and +85°C. It features a DSBGA-36 package, draws 3.2 mA of quiescent current, and includes a shutdown mode.

Feature Summary

• Digital input interface for direct integration with digital audio sources
• Integrated intelligent speaker protection and calibration system
• High efficiency Class-D architecture for optimized power consumption

Applications

• Smartphones and mobile communication devices
• Tablets and portable media players
• Voice-enabled IoT speakers and assistants
• Wearable audio equipment

Procurement Notes

Verify the specific suffix YFPT against the manufacturer's official datasheet to confirm pinout compatibility and thermal characteristics. Ensure that the ordering documentation matches the exact component designation to avoid substitution errors during assembly. Cross-reference the RoHS status and environmental compliance data provided in the latest product release notes before finalizing procurement decisions.

Selection Notes

Select this component when a compact mono amplifier with digital connectivity is required for space-constrained designs. The low operating voltage range suits battery-powered applications requiring efficient power management. Consider the DSBGA-36 package dimensions and thermal dissipation requirements relative to the printed circuit board layout constraints.

Part Context

This part belongs to the TAS2562 series of smart amplifiers designed for mobile consumer electronics. It integrates digital processing capabilities with power amplification to simplify system design. The series focuses on delivering high-fidelity audio while maintaining minimal footprint and power usage in handheld devices.

Replacement Considerations

Consult the manufacturer's replacement guide for verified cross-references. No public substitute part numbers are confirmed for this specific package variant.
