TAS2764YBHR

Overview

The TAS2764YBHR is a mono digital input Class-D audio amplifier with speaker IV sense. It delivers 13 W into 4 Ω and 8 W into 8 Ω at 12 V supply. PVDD operates from 2.3 V to 16 V, while VBAT1S ranges from 2.3 V to 5.5 V. AVDD is 1.8 V and IOVDD supports 1.2 V or 1.8 V. The device features Y-Bridge architecture, edge/spread spectrum control, and ultrasonic output up to 40 kHz. It includes integrated speaker voltage/current sense, short/open detection, thermal/over-current protection, and I2C/I2S/TDM interfaces.

Feature Summary

• Y-Bridge power architecture improves efficiency at low output power levels.
• Integrated speaker voltage and current sense enables real-time monitoring of loudspeaker behavior.
• Supports advanced ultrasonic applications such as motion and proximity detection.
• Brownout prevention scheme reduces gain when supply voltage drops.

Applications

• Laptop Computers
• Tablets
• Wireless Speakers
• Smart Speakers
• Consumer Audio Devices

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm package type and temperature range specifications. Ensure compatibility with system power rails and digital interface requirements before procurement.

Selection Notes

Select this component for high-efficiency mono audio amplification in space-constrained designs. The integrated speaker management and protection features simplify system design by reducing external component count.

Part Context

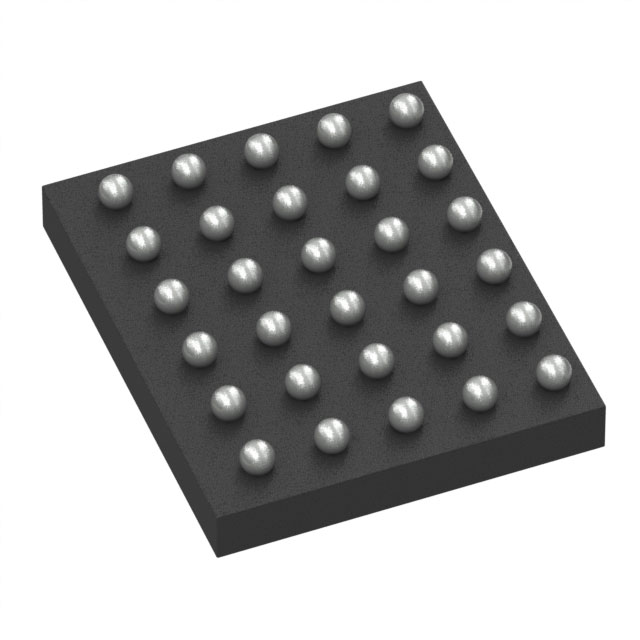

This part belongs to the TAS2764 family of digital input Class-D audio amplifiers. It is designed for driving small loudspeakers with high peak power efficiently. The device utilizes a compact 30-ball DSBGA package suitable for mobile and portable electronics.

Replacement Considerations

Consult the manufacturer's documentation for verified substitute part numbers within the same product family or equivalent performance alternatives.
