TBF-H035MP3B-W012

Antennas RF Overview

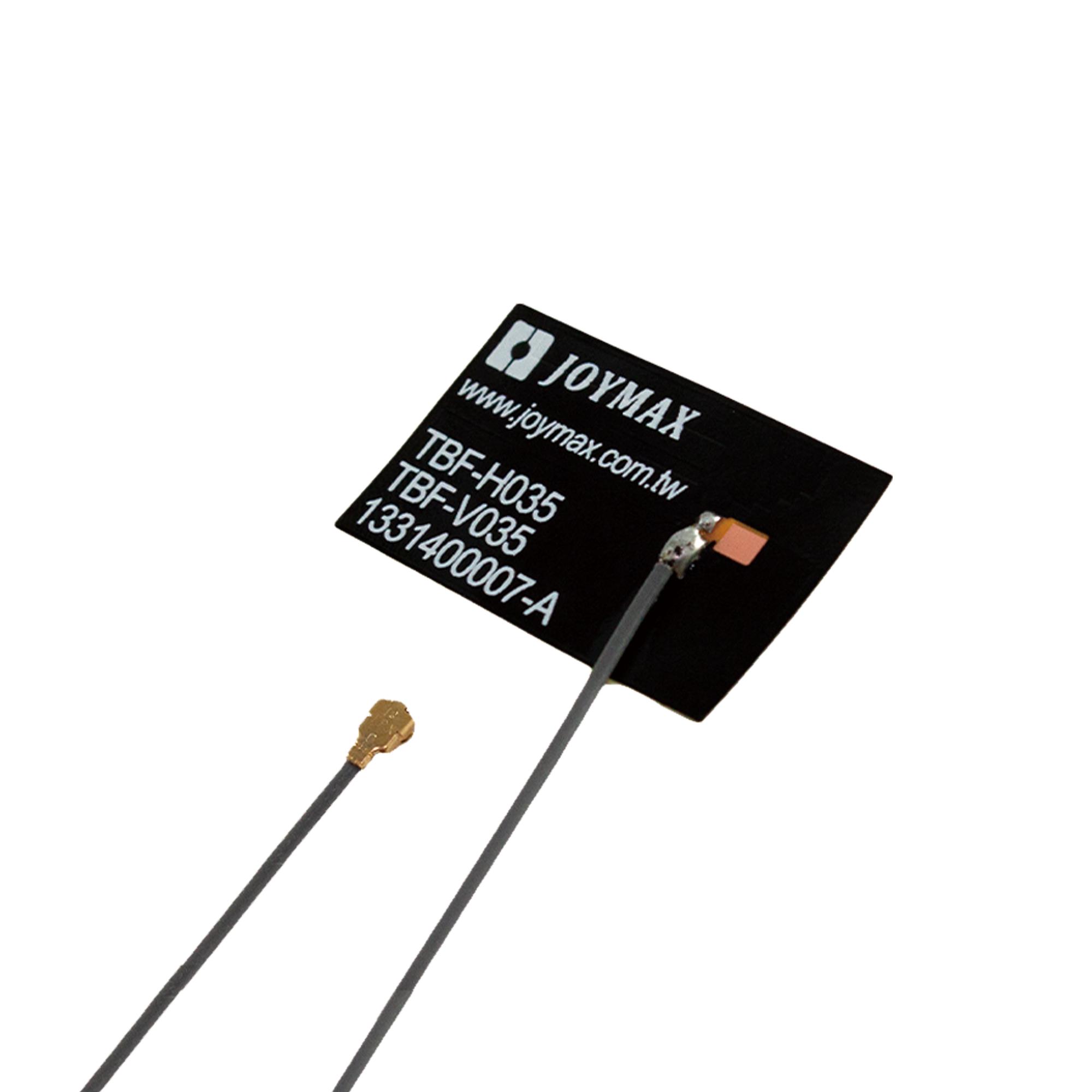

The TBF-H035MP3B-W012 is an embedded, adhesive-mount flexible printed circuit (FPC) dipole antenna designed for Wi-Fi 7 and Wi-Fi 6E applications. It operates across the 2.4 GHz, 5 GHz, and 6 GHz frequency bands, supporting IEEE 802.11ax and U-NII standards. The component features a flat patch design with a 120 mm cable length terminated in an MHF1 connector. This configuration allows for versatile integration into compact electronic devices requiring reliable wireless connectivity without external protrusions.

Antennas RF Feature Summary

• Supports Wi-Fi 7, Wi-Fi 6E, Wi-Fi 6, and Wi-Fi 5 protocols
• Adhesive mounting method for secure internal installation
• Ground plane independent operation capability

Antennas RF Applications

• IoT devices requiring multi-band connectivity
• Embedded wireless modules
• Compact consumer electronics

Antennas RF Procurement Notes

Verify the specific ordering suffix to ensure the correct cable length and connector type match your design requirements. Confirm that the MHF1 interface is compatible with your host board's RF connector. Check manufacturer documentation for precise impedance matching and VSWR specifications relevant to your PCB layout. Ensure the adhesive backing is suitable for the target enclosure material to maintain mechanical stability during operation.

Antennas RF Selection Notes

Select this antenna when space constraints prohibit external whip or ceramic antennas. Its FPC form factor allows routing along tight spaces within device enclosures. The multi-band support makes it suitable for modern routers and gateways utilizing Wi-Fi 6E or Wi-Fi 7 standards. Consider the 120 mm cable length as a critical dimension for routing paths within the product chassis.

Antennas RF Part Context

This model belongs to Joymax Electronics' line of embedded FPC antennas. It is part of a series including variants like TBF-V035MP3B, differing primarily in cable construction or connector types. These components are engineered for IoT applications where low profile and high reliability are essential. The manufacturer specializes in RF solutions that simplify integration for engineers designing complex wireless systems.

Antennas RF Replacement Considerations

Direct substitutes may include other Joymax models from the same family, such as TBF-V035MP3B, provided the connector interface and cable length requirements are met. Verify that any replacement maintains compatibility with 2.4 GHz, 5 GHz, and 6 GHz bands. Ensure the new part supports the required Wi-Fi standards (e.g., 802.11ax). Always cross-reference mechanical dimensions and mounting methods before substitution.
