TCLT1019

Overview

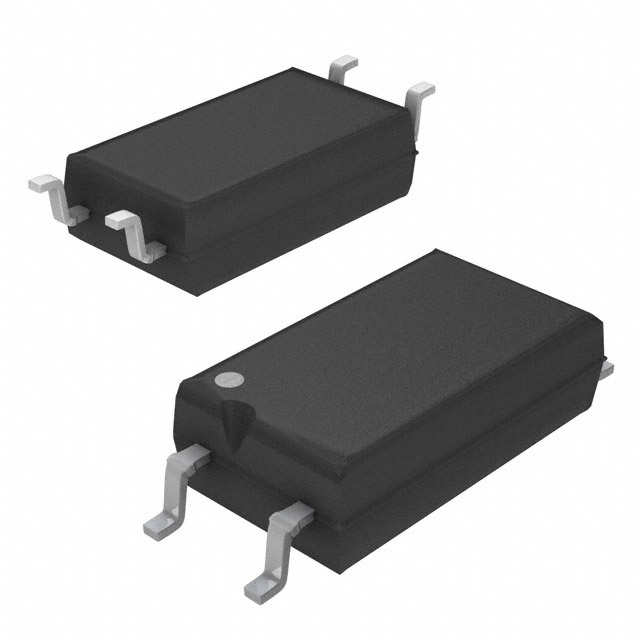

The TCLT1019 is a single-channel transistor output optocoupler manufactured by Vishay Semiconductor Opto Division. It features an NPN phototransistor output with a maximum collector-emitter voltage of 70V and a collector current rating of 50mA. The device provides 5000Vrms isolation voltage between input and output circuits. Key electrical parameters include a forward voltage of 1.6V, a saturation voltage of 300mV, and a current transfer ratio ranging from 200% to 400%. Typical switching times are 3µs for rise and 4.7µs for fall. It operates within a temperature range of -55°C to +100°C.

Feature Summary

• High isolation voltage capability of 5000Vrms for robust circuit separation
• Flexible current transfer ratio options available through specific order codes
• Low profile surface mount package design suitable for space-constrained applications

Applications

• General purpose signal isolation in industrial control systems
• Interface circuits for microprocessors and logic devices
• Power supply feedback loops requiring galvanic isolation

Procurement Notes

Verify the specific suffix code when ordering, as it determines the exact Current Transfer Ratio (CTR) bin and packaging configuration. Confirm that the selected variant matches the required SOP-4 or similar surface mount footprint. Ensure compliance with RoHS3 standards if applicable to your manufacturing process. Cross-reference the datasheet for thermal dissipation limits under high ambient temperatures.

Selection Notes

Select this component when a low-profile surface mount optocoupler with high isolation voltage is required. The TCLT1019 offers faster switching characteristics compared to standard DIP variants. Consider the CTR requirements of your application to choose the correct order suffix. Verify that the 50mA output current capacity meets the load requirements of the receiving circuitry.

Part Context

The TCLT1019 belongs to the TCLT series of transistor output optocouplers from Vishay. This series is designed to provide cost-effective isolation solutions using surface mount technology. It serves as a modern alternative to traditional through-hole packages like the CNY17 family, offering similar electrical performance in a compact form factor suitable for automated assembly processes.

Replacement Considerations

Direct pin-compatible replacements may include other Vishay SOP-4 optocouplers such as the TCLT1009, though CTR specifications differ. Generic equivalents from other manufacturers should be evaluated for isolation voltage and switching speed compatibility.
