TD541S485H

Drivers, Receivers, Transceivers Overview

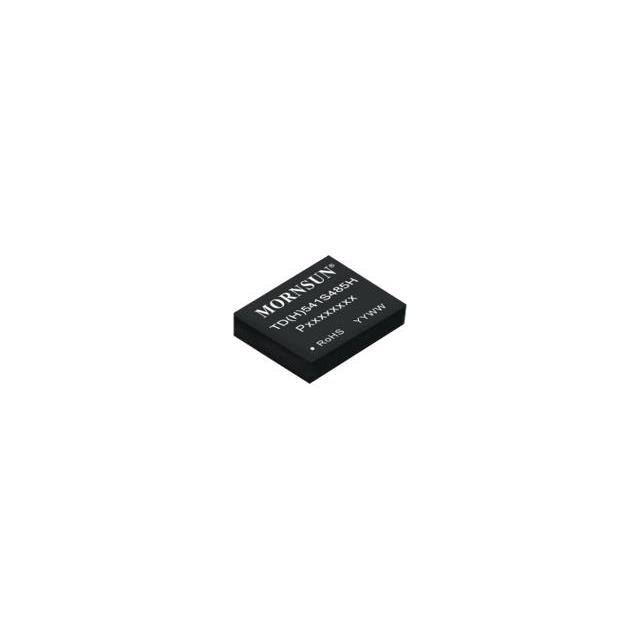

The TD541S485H is an integrated isolated RS-485/RS-422 transceiver manufactured by Mornsun America, LLC. It operates with a supply voltage range of 3.3V to 5.5V and supports data transmission rates up to 1Mbps. The device features a static current (Iq) of 15mA and provides isolation withstand voltage up to 3000VDC or 5000VDC depending on the specific variant configuration. It integrates a 5V efficient isolation power supply, eliminating the need for external isolated power components. The transceiver complies with TIA/EIA-485-A standards and includes bus load capability for up to 256 nodes using a 1/8 unit load design. It offers high common-mode transient immunity (CMTI) of 25kV/μs and ESD protection up to 15kV (HBM).

Drivers, Receivers, Transceivers Feature Summary

• Integrates digital isolation channel, isolation power supply, and RS-485 transceiver in a single chip.
• Supports I/O voltage levels for both 3.3V and 5V microprocessors.
• Includes failure protection circuits and low-power standby functionality.
• Features enhanced ESD protection and driver short-circuit protection on bus pins.

Drivers, Receivers, Transceivers Applications

• Industrial automation systems requiring robust communication interfaces.
• Building automation networks utilizing RS-485 bus architectures.
• Smart metering applications needing isolated data transmission.
• Remote signal interaction and transmission in harsh electrical environments.

Drivers, Receivers, Transceivers Procurement Notes

Verify the specific isolation voltage rating (3000VDC vs 5000VDC) as documentation references both values for this model family. Confirm the package type is DFN-16 (10x13mm) and check Moisture Sensitivity Level (MSL 3) requirements, which may necessitate baking before assembly. Ensure compatibility with AEC-Q100 standards if automotive qualification is required. Cross-reference official datasheets for exact pinout and thermal specifications.

Drivers, Receivers, Transceivers Selection Notes

Select the TD541S485H when a compact, chip-level solution for isolated RS-485 communication is needed. It serves as a direct replacement for discrete optocoupler-based designs, significantly reducing PCB area and component count. Choose this part for applications demanding high CMTI and ESD protection within a small DFN footprint. Verify that the 1Mbps data rate and 256-node bus capacity meet system requirements.

Drivers, Receivers, Transceivers Part Context

The TD541S485H belongs to Mornsun's R4 series of integrated power and communication modules. It is designed to replace traditional multi-component isolation schemes involving separate isolators and DC-DC converters. This integration aligns with industry trends toward miniaturization and higher reliability in industrial communication interfaces. The product line emphasizes cost reduction and simplified design processes for engineers.

Drivers, Receivers, Transceivers Replacement Considerations

Publicly documented equivalents include ADI ADM2582E and ADM2587E. These parts share similar functional characteristics and interface standards. Verify pin-to-pin compatibility and electrical parameter alignment before substitution. Ensure the replacement meets the same isolation voltage and temperature range specifications.
