TG5032CGN 30.7200M-CAGHNA3

Oscillators Overview

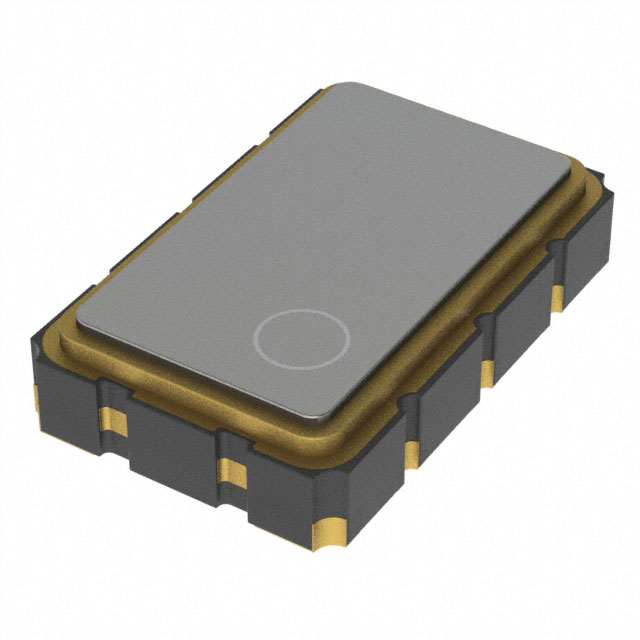

The TG5032CGN 30.7200M-CAGHNA3 is a temperature-compensated crystal oscillator (TCXO) manufactured by Epson Timing. It operates at a nominal frequency of 30.72 MHz with CMOS output format. The device requires a 3.3V supply voltage and features an enable/disable control function. It utilizes a 10-SMD, no-lead surface-mount package measuring 5.00mm x 3.20mm. The unit supports operation within a temperature range of -40°C to 85°C.

Oscillators Feature Summary

• Integrated temperature compensation for high frequency stability
• Built-in enable and disable control functionality
• CMOS digital output signal format

Oscillators Applications

• Precision timing circuits requiring stable reference clocks
• Telecommunications equipment utilizing 30.72 MHz signals
• Industrial systems operating in wide temperature environments

Oscillators Procurement Notes

Verify the specific suffix CAGHNA3 against official Epson documentation to confirm exact stability and pinout specifications. Ensure the design accommodates the 10-SMD no-lead package dimensions and thermal requirements. Confirm that the 3.3V logic levels match the target system interface before integration.

Oscillators Selection Notes

Select this component when a 30.72 MHz TCXO with enable control is required. Compare stability ratings against application needs. Verify package compatibility with PCB layout constraints. Ensure supply voltage and output drive capabilities align with downstream circuitry requirements.

Oscillators Part Context

This model belongs to the TG5032CGN series of compact TCXOs from Epson Timing. The series is designed for applications demanding precise frequency generation in space-constrained environments. The 30.72 MHz variant serves specific communication standards requiring this exact clock rate.

Oscillators Replacement Considerations

Consult Epson's official substitution guide for verified alternatives. Cross-reference pinouts and electrical characteristics carefully. Generic replacements may not match the specific enable functionality or stability metrics.
