THS4561IRGTR

Instrumentation, Op Amps, Buffer Amps Overview

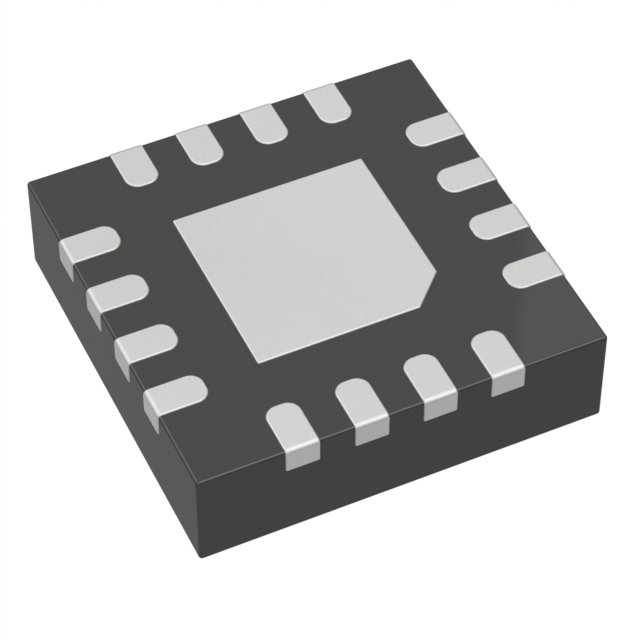

The THS4561IRGTR is a low-power, fully differential amplifier manufactured by Texas Instruments. It features a gain-bandwidth product of 68 MHz and a slew rate of 230 V/us. The device operates on a supply voltage range from 2.85 V to 12.6 V with a quiescent current of 780 uA. Key electrical specifications include a common-mode rejection ratio of 110 dB, an input offset voltage of 250 uV, and an output current capability of 27 mA per channel. It utilizes a VQFN-16 package and supports operation temperatures between -40 C and +125 C.

Instrumentation, Op Amps, Buffer Amps Feature Summary

• Provides rail-to-rail input and output capabilities for wide signal swing.
• Delivers high common-mode rejection ratio for improved noise immunity.
• Designed for low power consumption suitable for battery-operated systems.

Instrumentation, Op Amps, Buffer Amps Applications

• Driving analog-to-digital converters
• High-speed data acquisition systems
• Video and instrumentation applications

Instrumentation, Op Amps, Buffer Amps Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure correct packaging and temperature grade. Confirm that the component meets all required environmental standards and RoHS compliance specifications before finalizing procurement decisions.

Instrumentation, Op Amps, Buffer Amps Selection Notes

Select this component when a single-channel differential amplifier with moderate bandwidth and low power consumption is required. Ensure the application benefits from its rail-to-rail input/output characteristics and wide supply voltage range compatibility.

Instrumentation, Op Amps, Buffer Amps Part Context

This part belongs to the THS4561 series of fully differential amplifiers. It is designed to interface single-ended signals to differential formats while maintaining high performance in terms of linearity and noise. The series targets applications requiring efficient signal conditioning in compact form factors.

Instrumentation, Op Amps, Buffer Amps Replacement Considerations

Consult the manufacturer's documentation for verified substitute part numbers within the same family or compatible alternatives. Cross-reference pinouts and electrical parameters to ensure functional equivalence without redesigning the circuit board.
