TLP290(GR-TP,SE

Transistor, Photovoltaic Output Optoisolators Overview

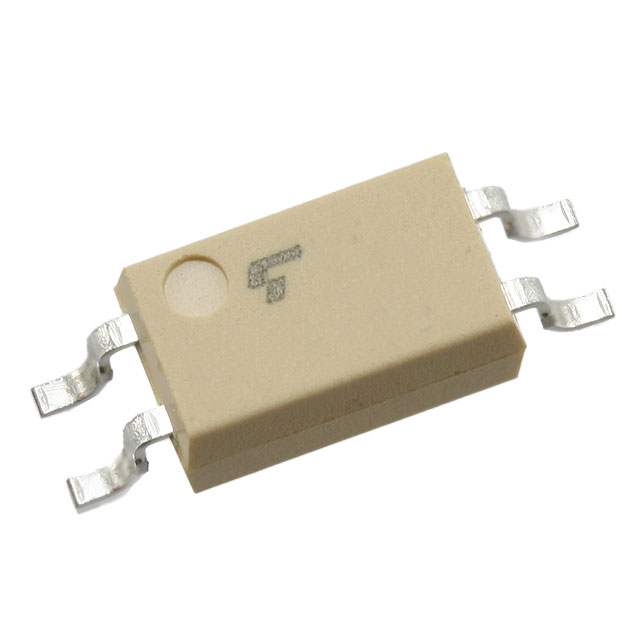

The TLP290(GR-TP,SE is a single-channel transistor output optocoupler manufactured by Toshiba Semiconductor and Storage. It integrates a GaAs infrared emitting diode optically coupled to a phototransistor within a 4-pin SOIC package. The device supports AC or DC input currents up to 50 mA and provides an isolation voltage of 3750 Vrms. Key electrical parameters include a collector-emitter voltage of 80 V, a typical rise time of 2 µs, and a fall time of 3 µs. The GR rank ensures a minimum current transfer ratio of 100% at 5 mA input current.

Transistor, Photovoltaic Output Optoisolators Feature Summary

• Directly operates with AC input current due to inverse parallel connected GaAs infrared LEDs
• High insulation performance with 3750 Vrms isolation voltage and reinforced insulation design
• Wide operating temperature range from -55°C to +110°C for industrial reliability
• Compact surface mount SOIC-4 package suitable for high-density mounting applications

Transistor, Photovoltaic Output Optoisolators Applications

• Programmable controllers
• Hybrid ICs
• AC/DC input modules
• Power supply circuits

Transistor, Photovoltaic Output Optoisolators Procurement Notes

Verify the specific suffix (GR-TP,SE) to confirm the current transfer ratio grade and tape-and-reel packaging format. Ensure compatibility with existing PCB footprints, as the SOIC-4 package dimensions are standardized but pin configurations must be validated against schematic requirements. Confirm that the 3750 Vrms isolation rating meets the safety standards required for the target application environment.

Transistor, Photovoltaic Output Optoisolators Selection Notes

Select this component when direct AC drive capability is required without additional rectification circuitry. The GR rank is appropriate for designs demanding a minimum current transfer ratio of 100%, ensuring robust signal transmission. Consider the 80 V collector-emitter voltage limit for load switching applications. Verify that the 50 mA maximum forward current aligns with the driving source capabilities and thermal management constraints of the system.

Transistor, Photovoltaic Output Optoisolators Part Context

The TLP290 series serves as an evolution of earlier models like the TLP280, offering improved cost-performance and enhanced insulation distances. It is designed to replace legacy components while maintaining pin compatibility with certain MFSOP4 packages. The series is widely utilized in industrial automation and power electronics where reliable galvanic isolation between control and power stages is critical.

Transistor, Photovoltaic Output Optoisolators Replacement Considerations

TLP280 is a confirmed substitute part number.
