TLP383(GR-TPL,E

Transistor, Photovoltaic Output Optoisolators Overview

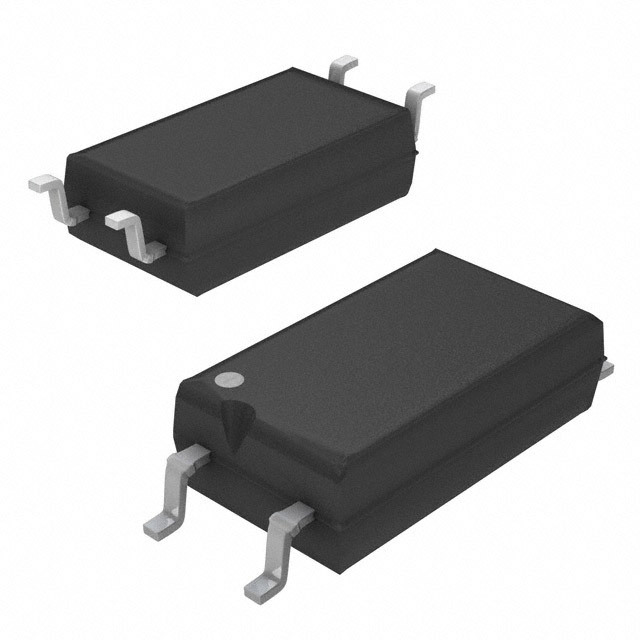

The TLP383(GR-TPL,E is a single-channel transistor output optocoupler manufactured by Toshiba Semiconductor and Storage. It features a GaAs infrared LED optically coupled to a phototransistor within a compact 6-SO, 4-lead surface-mount package. The device provides a high isolation voltage of 5000Vrms and supports a maximum collector-emitter voltage of 80V with a continuous output current of 50mA. Key electrical parameters include a typical forward voltage of 1.25V, a maximum saturation voltage of 300mV, and a DC forward current limit of 50mA. The unit operates across a temperature range of -55°C to 125°C, with typical switching times of 3µs for both turn-on and turn-off.

Transistor, Photovoltaic Output Optoisolators Feature Summary

• High isolation voltage capability of 5000Vrms for robust circuit separation
• Compact 6-SO surface-mount package designed for high-density mounting applications
• Wide operating temperature range extending from -55°C to 125°C

Transistor, Photovoltaic Output Optoisolators Applications

• Programmable Logic Controllers (PLCs)
• AC Adapters
• I/O Interface Boards

Transistor, Photovoltaic Output Optoisolators Procurement Notes

Verify the specific suffix GR-TPL,E against official Toshiba documentation to confirm compliance with RoHS3 standards and REACH regulations. Confirm that the requested packaging format aligns with available distribution options such as tape and reel or cut tape. Ensure design-in requirements match the specified 6-SO package dimensions and pinout configuration before finalizing procurement orders.

Transistor, Photovoltaic Output Optoisolators Selection Notes

Select this component when high isolation voltage and wide temperature operation are required in space-constrained designs. The 6-SO package offers a smaller footprint compared to standard DIP packages, making it suitable for dense PCB layouts. Verify that the 50mA output current and 80V collector-emitter voltage meet the load requirements of the target application circuit.

Transistor, Photovoltaic Output Optoisolators Part Context

This part belongs to the TLP383 series of photocouplers, which utilize a GaAs infrared LED and a phototransistor. The series is engineered for high isolation performance and is commonly utilized in industrial control systems where reliable signal transmission across isolated boundaries is critical. The specific variant includes packaging and compliance markings defined by the manufacturer's standard nomenclature.

Transistor, Photovoltaic Output Optoisolators Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
