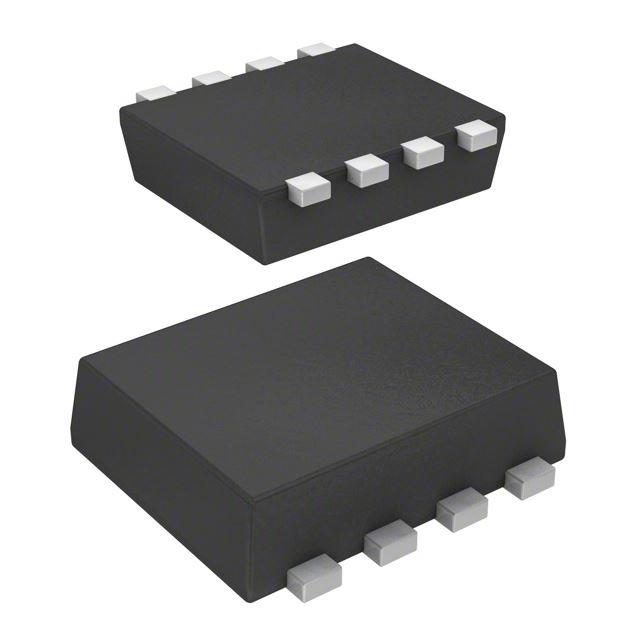

TPCP8407,LF

$0.83

Description：MOSFET N/P-CH 40V 5A PS-8
Series：-

SKU:ad9691a8b4ef Category: FET, MOSFET Arrays Brand: Toshiba Semiconductor and Storage

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOSFET N/P-CH 40V 5A PS-8
Series：-
Mfr：Toshiba Semiconductor and Storage
Package：Tape & Reel (TR),Cut Tape (CT)
Technology：MOSFET (Metal Oxide)
Configuration：N and P-Channel
FET Feature：-
Drain to Source Voltage (Vdss)：40V
Current - Continuous Drain (Id) @ 25°C：5A (Ta), 4A (Ta)
Rds On (Max) @ Id, Vgs：36.3mOhm @ 2.5A, 10V, 56.8mOhm @ 2A, 10V
Vgs(th) (Max) @ Id：3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs：11.8nC @ 10V, 18nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds：505pF @ 10V, 810pF @ 10V
Power - Max：690mW (Ta)
Operating Temperature：150°C
Mounting Type：Surface Mount
Package / Case：8-SMD, Flat Leads
Supplier Device Package：PS-8
Grade：Automotive
Qualification：AEC-Q101

Download product information

TPCP8407,LF

Overview

The TPCP8407,LF is a dual-channel silicon MOSFET manufactured by Toshiba Semiconductor and Storage. It integrates one N-channel and one P-channel enhancement-mode device within a PS-8 surface-mount package. The component is qualified to AEC-Q101 standards for automotive reliability. Key electrical parameters include a drain-source voltage of ±40 V, continuous drain currents of 5 A (N-channel) and -4 A (P-channel), and low on-resistance values of 29.1 mΩ and 43.7 mΩ respectively at specified gate voltages. Thermal resistance ranges from 84.7 °C/W to 348.8 °C/W depending on operation mode.

Feature Summary

AEC-Q101 qualified for automotive applications
Low gate charge for efficient switching
Small, thin PS-8 package design
Low leakage current characteristics

Applications

Motor Drivers
Mobile Equipment

Procurement Notes

Verify the specific ordering suffix against official Toshiba documentation to confirm lead-free status and packaging configuration. Ensure that the procurement channel provides valid traceability data consistent with automotive-grade requirements. Confirm RoHS compliance details directly with the manufacturer or authorized distributor before finalizing orders.

Selection Notes

Select this component for designs requiring compact dual-channel integration in mobile or motor control circuits. Evaluate thermal management strategies based on single versus dual operation power dissipation limits. Verify that the required gate drive voltage aligns with the specified threshold and on-resistance test conditions for optimal performance.

Part Context

This part belongs to Toshiba's U-MOS IV / U-MOS VI series of silicon MOSFETs. It was commercially introduced in May 2013. The PS-8 package provides an eight-pin surface-mount footprint optimized for space-constrained applications while maintaining necessary thermal and electrical isolation between the integrated N-channel and P-channel devices.
