TPSM-P25HM33ST1-156.250M

Oscillators Overview

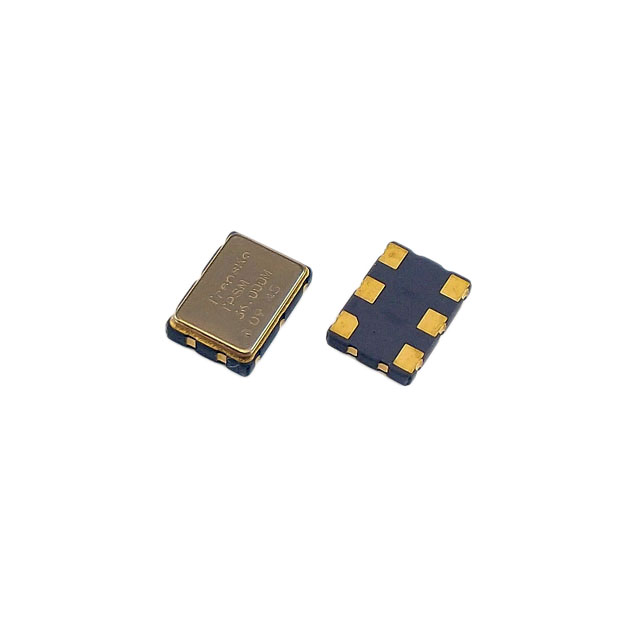

The TPSM-P25HM33ST1-156.250M is a crystal oscillator (XO) manufactured by Transko Electronics, Inc., operating at a frequency of 156.25 MHz. It utilizes an LVPECL output format and supports a 3.3V supply voltage with enable/disable functionality. The component is housed in a 6-SMD, no lead surface mount package, designed for compact electronic applications requiring precise timing signals.

Oscillators Feature Summary

• Features LVPECL output format for high-speed digital interfaces
• Includes enable/disable control function for power management
• Utilizes a standard crystal base resonator for stable oscillation

Oscillators Applications

• High-speed data communication systems
• Network infrastructure equipment
• Telecommunications signal processing

Oscillators Procurement Notes

Verify the specific part number TPSM-P25HM33ST1-156.250M against official Transko Electronics documentation to confirm current product status and availability. Ensure that the required LVPECL output and 3.3V supply specifications match the target design requirements before procurement.

Oscillators Selection Notes

Select this component when a 156.25 MHz clock source with LVPECL outputs is required. Consider the 6-SMD no lead package for surface mount assembly constraints. Verify that the enable/disable feature aligns with system power sequencing needs.

Oscillators Part Context

This oscillator belongs to the TPSM series from Transko Electronics, which specializes in miniature SMD oscillators. The series typically offers various frequencies and output types, with this specific model providing a standard XO configuration optimized for modern electronic designs.

Oscillators Replacement Considerations

Direct substitutes may include other 156.25 MHz LVPECL oscillators in compatible packages. Verify pinout compatibility and electrical specifications before replacing. Consult Transko Electronics for officially confirmed alternative part numbers.
