Product Detailed Parameters
- Description：IC VREF SHUNT ADJ 1% TO92
- Series：-
- Mfr：Taiwan Semiconductor Corporation
- Package：Box
- Output Type：Adjustable
- Voltage - Output (Min/Fixed)：1.24V
- Voltage - Output (Max)：10 V
- Current - Output：12 mA
- Operating Temperature：0°C ~ 70°C (TA)
- Mounting Type：Through Hole

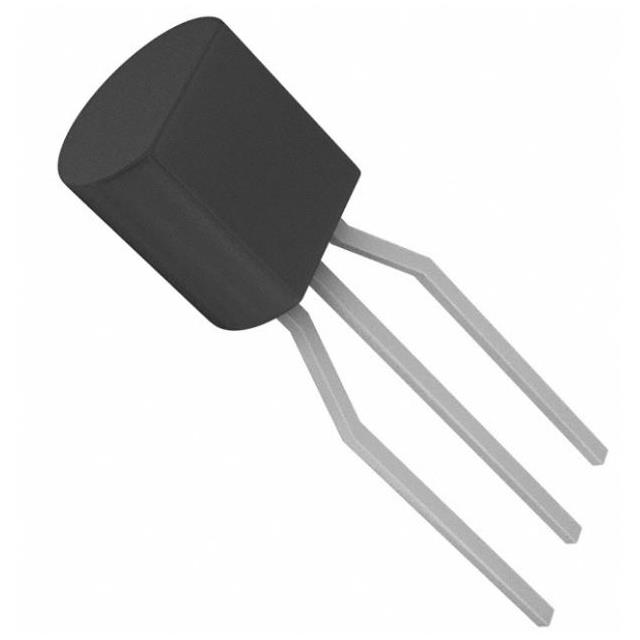

- Package / Case：TO-226-3, TO-92-3 (TO-226AA)
- Supplier Device Package：TO-92
- Grade：-
- Qualification：-
Download product information
Overview
The TS432BCT B0G is an adjustable shunt voltage reference manufactured by Taiwan Semiconductor Corporation. It provides a stable output voltage ranging from 1.24 V to 10 V with a tolerance of ±0.5%. The device features a temperature coefficient of 100 ppm/°C and operates within a temperature range of 0°C to 70°C. Key electrical specifications include a cathode current of 65 µA and an output current capability of 12 mA. It is housed in a TO-92 through-hole package, specifically TO-226-3 standard body.
Feature Summary
- Adjustable shunt voltage reference design
- High precision with ±0.5% initial accuracy
- Low operating current for power efficiency
- Stable performance with capacitive loads
Applications
- Power supply regulation circuits
- Battery charging systems
- Portable equipment power management
- Over-voltage protection circuits
Procurement Notes
Verify the specific suffix B0G against official datasheets to confirm package type and tolerance grade. Confirm component status as not recommended for new designs before procurement planning. Ensure compatibility with existing thermal and electrical constraints in legacy systems requiring this specific historical part number.
Selection Notes
Select this component when a low-cost, through-hole adjustable reference is required for industrial applications. Consider the 100 ppm/°C temperature coefficient for thermal stability needs. Evaluate the 12 mA output current limit against load requirements. Verify availability due to its discontinued status for new designs.
Part Context
This part belongs to the TS432 series of adjustable shunt voltage references. The series offers flexibility in various power management applications. The TS432BCT variant specifically denotes the through-hole TO-92 packaging configuration. It serves as a cost-effective solution for precision voltage referencing in consumer and industrial electronics.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Due to the 'Not Recommended for New Design' status, alternative sourcing should focus on inventory availability or verified equivalent parts from other manufacturers with matching electrical and mechanical specifications.
