TS94033SKTRC

Instrumentation, Op Amps, Buffer Amps Overview

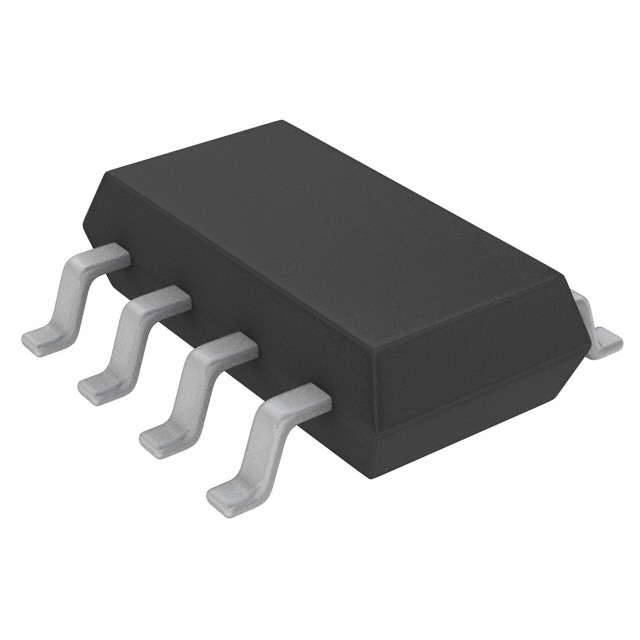

The TS94033SKTRC is a low-offset high-side current sense amplifier manufactured by Semtech Corporation. It operates with a quiescent current below 28µA and features a standby current of 1.1µA. The device provides a single circuit configuration housed in an SOT-23-8 package. Key electrical specifications include a 3 dB bandwidth of 4 kHz, an output current of 1 mA per channel, and a slew rate of 0.01V/µs. It is designed for applications requiring precise current monitoring with minimal power consumption.

Instrumentation, Op Amps, Buffer Amps Feature Summary

• Low-offset high-side current sensing capability
• Ultra-low quiescent current operation below 28µA
• Dedicated standby mode with 1.1µA current draw

Instrumentation, Op Amps, Buffer Amps Applications

• Battery management systems
• Industrial process control
• Portable instrumentation

Instrumentation, Op Amps, Buffer Amps Procurement Notes

Verify the exact part number TS94033SKTRC against official Semtech documentation to ensure compatibility with your design requirements. Confirm that the SOT-23-8 package footprint matches your PCB layout. Check for any specific handling or storage instructions provided in the datasheet to maintain component integrity during assembly.

Instrumentation, Op Amps, Buffer Amps Selection Notes

Select this component when high-side current monitoring is required with strict power constraints. The low offset voltage ensures accuracy in low-current applications. Consider the 4 kHz bandwidth limit for dynamic signal response. Ensure the input common-mode voltage range aligns with your system's supply rails before finalizing the design choice.

Instrumentation, Op Amps, Buffer Amps Part Context

This device belongs to Semtech's portfolio of precision analog components. It complements their broader range of power management and signal conditioning solutions. The SC33 series mentioned in related data refers to linear regulators, distinct from this current sense amplifier family. Semtech focuses on connectivity and protection solutions alongside such analog ICs.

Instrumentation, Op Amps, Buffer Amps Replacement Considerations

No public confirmed substitute part numbers are available in the provided source material. Consult Semtech technical support for potential cross-references if this specific model is unavailable.
