TSL22-H20CQ18ST-32.768K-TR

Oscillators Overview

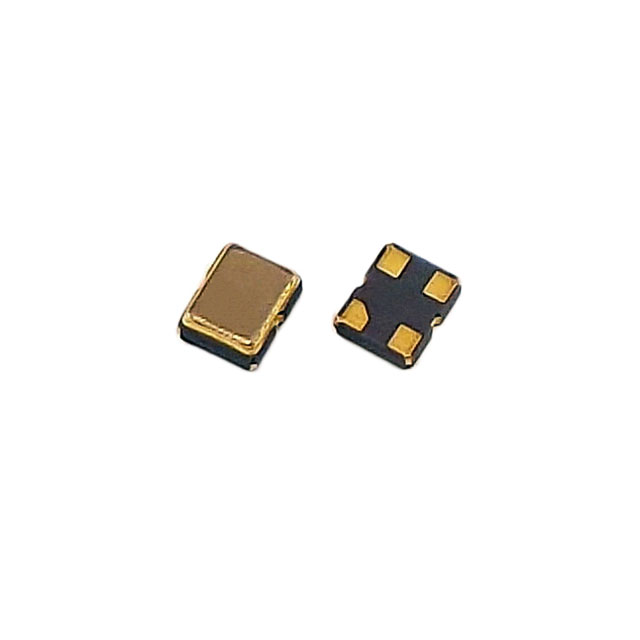

The TSL22-H20CQ18ST-32.768K-TR is a surface-mount crystal oscillator manufactured by Transko Electronics, Inc. It operates at a nominal frequency of 32.768 kHz with a frequency stability of ±20 ppm. The device utilizes HCMOS output logic and supports a supply voltage range of 1.8V to 3.6V. Key electrical specifications include a maximum supply current of 200 µA and an enable/disable function for power management. The component is designed for operation within a temperature range of -40°C to +85°C and is housed in a compact 4-SMD, No Lead package with a maximum height of 1.00 mm.

Oscillators Feature Summary

• HCMOS output interface compatible with standard digital logic levels
• Integrated enable and disable control function for power optimization
• RoHS compliant construction supporting environmental regulations

Oscillators Applications

• Real-time clock circuits in portable electronic devices
• Low-power microcontroller system timing references
• Embedded systems requiring precise low-frequency synchronization

Oscillators Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to confirm exact pinout configuration and tolerance grades. Ensure that the selected variant matches the required operating temperature range and supply voltage constraints for the target application environment. Cross-reference the datasheet revision date to guarantee compatibility with current design standards and regulatory compliance requirements.

Oscillators Selection Notes

Select this component when a low-profile surface-mount solution is required for timekeeping applications. Evaluate the 200 µA supply current against battery life requirements for portable designs. Confirm that the 1.8V minimum supply voltage aligns with the system's power rail availability. Consider the ±20 ppm stability sufficient for general real-time clock functions rather than high-precision metrology.

Oscillators Part Context

This oscillator belongs to the TSL series of surface-mount crystal oscillators from Transko Electronics. The series provides various frequency options and package sizes tailored for consumer electronics and industrial applications. The TSL22 model specifically targets space-constrained designs requiring reliable low-frequency timing signals with minimal power consumption.

Oscillators Replacement Considerations

Direct substitutes must match the 32.768 kHz frequency, HCMOS output type, and 4-SMD package dimensions. Verify equivalent supply voltage ranges and enable/disable functionality before integration.
