TSM16-H25CQ33RT-26.000M

Oscillators Overview

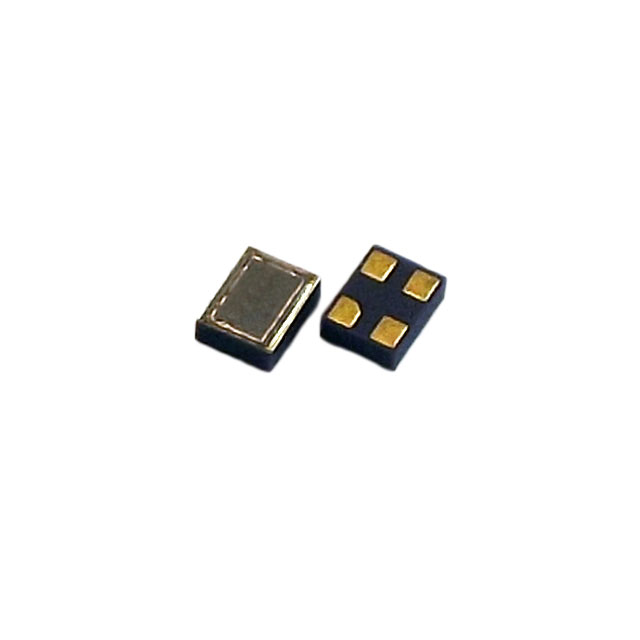

The TSM16-H25CQ33RT-26.000M is a standard crystal oscillator (XO) manufactured by Transko Electronics, Inc., operating at a nominal frequency of 26 MHz. It utilizes HCMOS output logic and requires a 3.3V supply voltage. The device features an enable/disable function for power management. Frequency stability is rated at ±25 ppm. The component is housed in a lead-free 4-SMD package with no leads, measuring 0.063 inches in length and 0.047 inches in width. It supports an operating temperature range from -40°C to +85°C.

Oscillators Feature Summary

• HCMOS output signal compatibility
• Enable/Disable control function
• Lead-free surface mount construction

Oscillators Applications

• General electronic circuits requiring precise timing
• Embedded systems utilizing CMOS logic interfaces
• Portable devices requiring low-power oscillation

Oscillators Procurement Notes

Verify the specific part number against official Transko Electronics documentation to confirm electrical characteristics and mechanical dimensions. Ensure that the required supply voltage and output logic levels match system design specifications. Confirm environmental ratings align with intended operational conditions before procurement.

Oscillators Selection Notes

Select this component when a 26 MHz clock source with HCMOS output is required. Consider the ±25 ppm stability rating for timing accuracy needs. Evaluate the 4-SMD footprint constraints against PCB layout requirements. Verify the 3.3V supply compatibility with existing power rails.

Oscillators Part Context

This model belongs to the TSM16 series, described as small surface-mount crystal oscillators. The series offers various frequencies up to 80 MHz and multiple voltage options including 1.8V and 3.3V. The TSM16-H25CQ33RT-26.000M specifically targets applications needing a 26 MHz signal with standard CMOS outputs.

Oscillators Replacement Considerations

Cross-reference with other 26 MHz HCMOS XO components in 4-SMD packages. Ensure equivalent supply voltage, stability, and temperature range. Verify pinout compatibility if direct replacement is intended.
