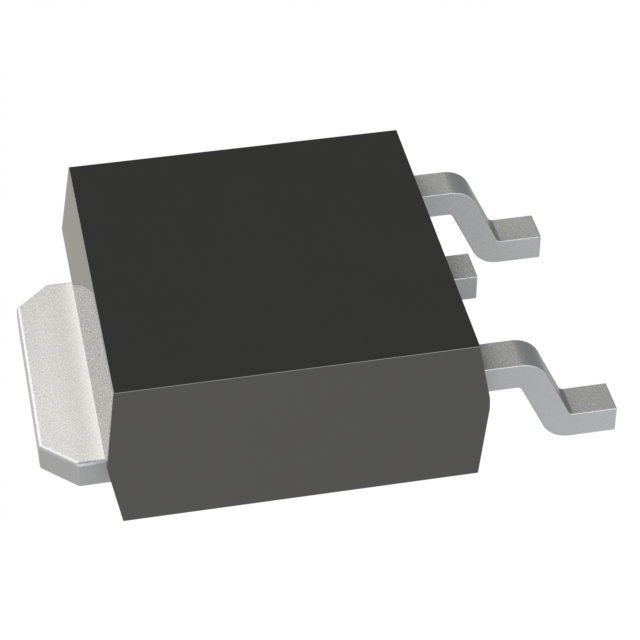

TSM600N25ECH C5G is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists Taiwan Semiconductor Corporation. Its product description is MOSFET N-CHANNEL 250V 8A TO251. Review the specifications below when checking this part for your BOM.
Single FETs, MOSFETs specifications for TSM600N25ECH C5G
- Description：MOSFET N-CHANNEL 250V 8A TO251
- Series：-
- Mfr：Taiwan Semiconductor Corporation
- Package：Tube
- FET Type：N-Channel
- Technology：MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss)：250 V
- Current - Continuous Drain (Id) @ 25°C：8A (Tc)
- Drive Voltage (Max Rds On, Min Rds On)：10V
- Rds On (Max) @ Id, Vgs：600mOhm @ 4A, 10V
- Vgs(th) (Max) @ Id：5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs：8.4 nC @ 10 V
- Vgs (Max)：±30V
- Input Capacitance (Ciss) (Max) @ Vds：423 pF @ 25 V
- FET Feature：-
- Power Dissipation (Max)：52W (Tc)
- Operating Temperature：150°C (TJ)
- Grade：-
- Qualification：-
- Mounting Type：Through Hole
- Supplier Device Package：TO-251 (IPAK)
- Package / Case：TO-251-3 Short Leads, IPAK, TO-251AA
Single FETs, MOSFETs datasheet and documents for TSM600N25ECH C5G
Single FETs, MOSFETs Overview
The TSM600N25ECH C5G is a single N-Channel Power MOSFET manufactured by Taiwan Semiconductor. It utilizes trench technology to achieve low on-resistance and high switching efficiency. The device features a drain-source breakdown voltage of 250V and a continuous drain current rating of 22A. Packaged in the TO-252 (DPAK) format, it is designed for through-hole mounting applications requiring robust performance in power conversion circuits.
Single FETs, MOSFETs Feature Summary
- Built with advanced trench technology for superior electrical performance
- Optimized for fast power switching with low gate charge characteristics
- Compliant with RoHS standards for environmental safety
Single FETs, MOSFETs Applications
- General purpose power supply designs
- DC-DC converter circuits
- Motor control systems
Single FETs, MOSFETs Procurement Notes
Verify the specific suffix C5G against the manufacturer's official datasheet to confirm package type and tape-and-reel specifications. Ensure the ordering part number matches the exact electrical parameters required for your circuit design before finalizing procurement.
Single FETs, MOSFETs Selection Notes
Select this component when a 250V N-Channel MOSFET with moderate current handling is required. The TO-252 package offers a balance between thermal dissipation and board space. Verify that the gate drive voltage aligns with the threshold requirements for optimal conduction.
Single FETs, MOSFETs Part Context
This part belongs to the TSM series of N-Channel Power MOSFETs from Taiwan Semiconductor. These devices are engineered for general-purpose switching applications, offering a reliable solution for power management tasks where efficiency and ruggedness are prioritized over ultra-high voltage capabilities.
Single FETs, MOSFETs Replacement Considerations
Consult the manufacturer's cross-reference guide for verified substitutes. Ensure any replacement maintains the same voltage, current, and package constraints.
