TSMV-H50HM50ST5C-74.1758M-TR

Oscillators Overview

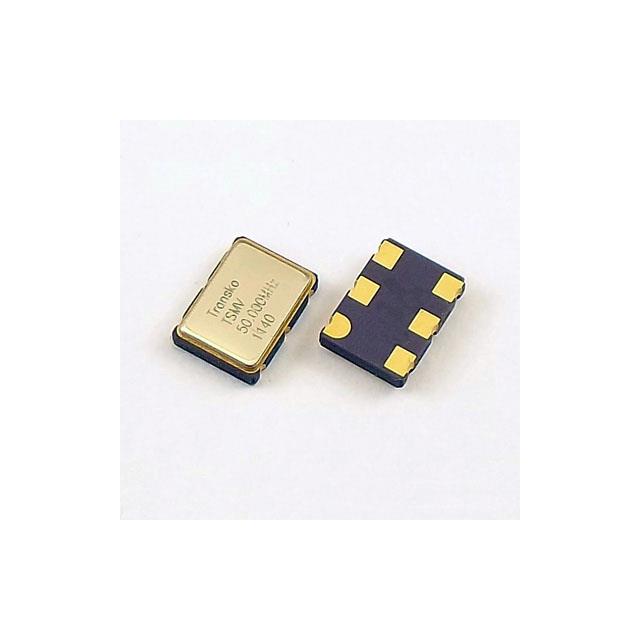

The TSMV-H50HM50ST5C-74.1758M-TR is a Voltage-Controlled Crystal Oscillator (VCXO) manufactured by Transko Electronics, Inc. It operates at a nominal frequency of 74.1758 MHz and utilizes HCMOS output logic levels. The device features a 5V enable/disable control function for power management. It is housed in a compact 6-SMD, No Lead package with dimensions of 7.0 x 5.0 x 2.0 mm. This component is designed for applications requiring tunable frequency control within standard ceramic SMD form factors.

Oscillators Feature Summary

• Voltage-controlled crystal oscillator design for tunable frequency applications
• HCMOS output interface compatible with standard digital logic
• Integrated 5V enable/disable control pin for power management

Oscillators Applications

• Tunable frequency control systems
• Communication equipment requiring frequency agility
• Clock generation circuits needing voltage adjustment

Oscillators Procurement Notes

Verify the specific part number against official Transko Electronics documentation to confirm the 74.1758 MHz frequency and HCMOS output specifications. Ensure the 6-SMD package variant matches the required PCB footprint. Confirm that the 5V enable functionality aligns with system power management requirements before procurement.

Oscillators Selection Notes

Select this component when voltage-controlled frequency tuning is required rather than fixed-frequency stability. The HCMOS output suits digital interfaces, while the 5V enable feature aids in power optimization. Consider the 7.0 x 5.0 mm package size for space-constrained designs requiring VCXO capabilities.

Oscillators Part Context

This part belongs to the TSMV series of standard ceramic SMD oscillators from Transko Electronics. The series includes various frequencies and output types, with this specific model focusing on the 74.1758 MHz range. It shares the same physical envelope as other TSMV variants but differs in electrical characteristics and control features.

Oscillators Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing designs if cross-referencing with other VCXO models from different manufacturers.
