TSN525M60

Single Diodes Overview

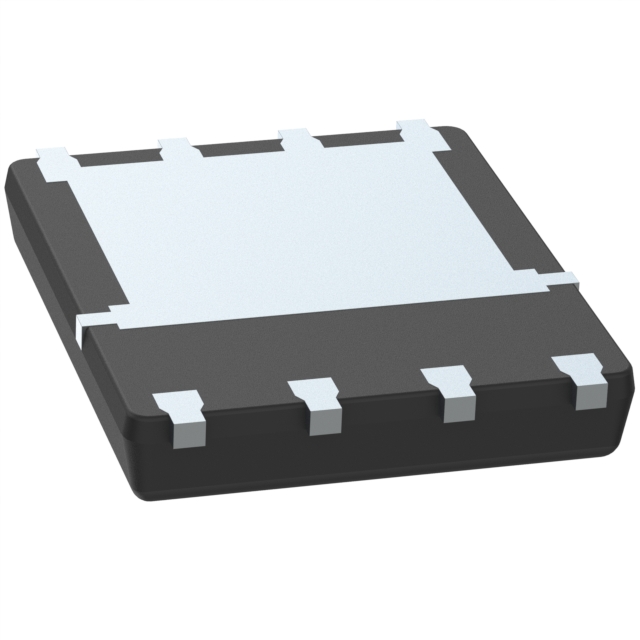

The TSN525M60 is a 25A, 60V Trench Schottky rectifier manufactured by Taiwan Semiconductor. It utilizes silicon technology and features a dual cathode common anode configuration within an 8-pin PDFN-56-8 surface-mount package. Key electrical parameters include a maximum forward voltage of 480mV at rated current, a reverse leakage current of 500µA, and a peak non-repetitive forward surge current capability of 200A. The device operates reliably across a temperature range from -55°C to +150°C junction temperature.

Single Diodes Feature Summary

• Employs Trench Schottky technology for enhanced efficiency
• Features dual cathode common anode configuration
• Designed for surface mount applications in compact spaces

Single Diodes Applications

• DC-DC converters
• Power supply units
• Reverse polarity protection circuits

Single Diodes Procurement Notes

Verify the specific suffix (e.g., S3G) against the manufacturer's latest documentation to ensure compatibility with current production revisions. Confirm RoHS compliance status directly with the supplier or official datasheet before integration into regulated assemblies.

Single Diodes Selection Notes

Select this component when high current handling and low forward voltage drop are critical for system efficiency. Ensure the PCB layout supports the thermal requirements of the PDFN-56-8 package to maintain performance within the specified operating temperature range.

Single Diodes Part Context

This part belongs to the TSN series of Trench Schottky rectifiers from Taiwan Semiconductor. The series is designed for general-purpose rectification in power electronics, offering a balance of high current capacity and fast switching characteristics suitable for modern compact power designs.

Single Diodes Replacement Considerations

Check for direct substitutes such as the TSN520M60 for lower current requirements or other variants within the same family that share the PDFN-56-8 footprint and similar electrical ratings.
