TWJTKLSAYF-19.200000

Oscillators Overview

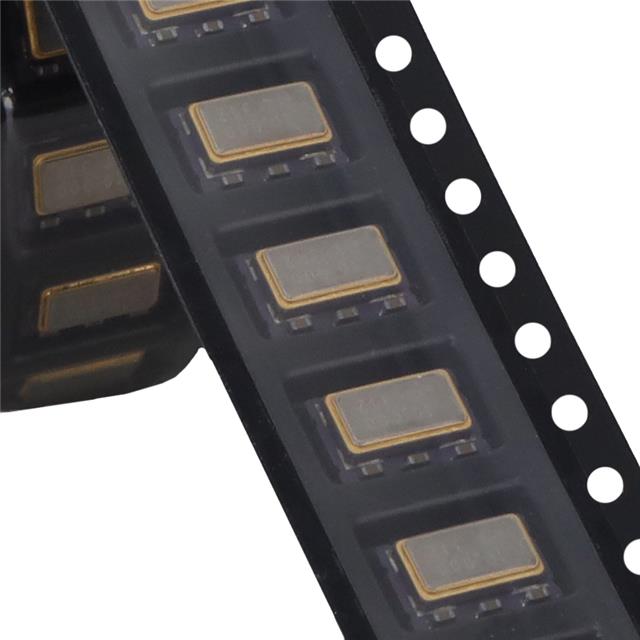

The TWJTKLSAYF-19.200000 is a Temperature Compensated Crystal Oscillator (TCXO) manufactured by Taitien, operating at a nominal frequency of 19.2 MHz. It utilizes a clipped sine wave output and functions with a supply voltage of 2.5V. The device features a frequency stability of ±280 ppb and operates within a temperature range of -40°C to +85°C. Maximum supply current is specified as 5mA. The component is housed in a compact 4-SMD, No Lead package with dimensions of 0.197 inches in length.

Oscillators Feature Summary

• Temperature compensated crystal oscillator design for stable frequency generation
• Clipped sine wave output signal configuration
• Low power consumption suitable for portable applications
• Surface mount construction for automated assembly

Oscillators Applications

• Portable electronic devices requiring precise timing
• Battery-powered equipment with low power constraints
• Communication systems utilizing 19.2 MHz clock signals
• Industrial control modules operating in variable temperatures

Oscillators Procurement Notes

Verify the specific part number suffix against official Taitien documentation to confirm exact electrical characteristics and pinout compatibility. Ensure that the required frequency stability and operating temperature range align with the system specifications before procurement. Cross-reference the package dimensions with the PCB footprint to guarantee mechanical fit. Confirm RoHS compliance status if environmental regulations apply to the final product assembly.

Oscillators Selection Notes

Select this component when a 19.2 MHz TCXO with ±280 ppb stability is required for -40°C to +85°C environments. Consider the 2.5V supply voltage and 5mA current draw for power budget calculations. The 4-SMD no-lead package is suitable for high-density surface mount layouts. Evaluate thermal management requirements given the operating temperature range and self-heating effects inherent to TCXO designs.

Oscillators Part Context

This oscillator belongs to Taitien's series of quartz frequency control products, which include crystals, oscillators, and atomic clocks. Taitien manufactures these components for applications demanding high precision and reliability. The TWJTKLSAYF model represents a specific variant within their TCXO portfolio, designed to meet stringent timing requirements in modern electronic systems.

Oscillators Replacement Considerations

Check Taitien datasheets for alternative part numbers within the same series offering different stability or temperature ranges. Verify pin-to-pin compatibility with existing PCB layouts before substituting. Ensure that any replacement maintains the 19.2 MHz frequency and clipped sine wave output specification.
