TX3-L-25MP-26.000M-TR

Oscillators Overview

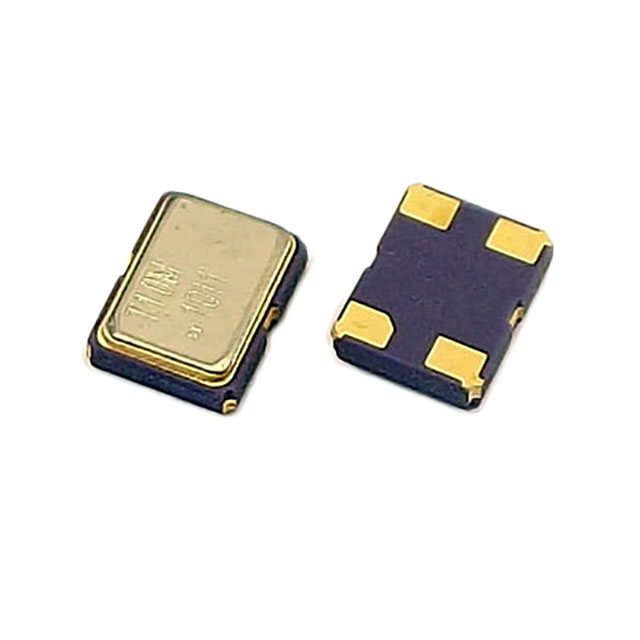

The TX3-L-25MP-26.000M-TR is a temperature-compensated crystal oscillator (TCXO) manufactured by Transko Electronics, Inc. It operates at a nominal frequency of 26 MHz and delivers a clipped sine wave output signal. The device functions on a single 3.3V supply voltage and utilizes a surface-mount package with four contacts and no leads. This component is designed for applications requiring stable frequency generation under varying thermal conditions.

Oscillators Feature Summary

• Temperature compensation mechanism ensures high stability accuracy up to ±0.05ppm
• Integrated design suitable for femtocell applications
• Surface-mount construction eliminates leaded packaging requirements

Oscillators Applications

• Femtocell base station systems
• Telecommunications equipment requiring precise timing
• Electronic devices needing stable clock references in variable temperatures

Oscillators Procurement Notes

Verify the specific datasheet version for the TX3-L-25MP-26.000M-TR to confirm electrical characteristics and mechanical dimensions. Ensure that the required output waveform matches the clipped sine wave specification provided by the manufacturer. Cross-reference the operating temperature range and supply voltage requirements against the target application environment before finalizing procurement decisions.

Oscillators Selection Notes

Select this component when a compact, leadless surface-mount oscillator is required for 26 MHz applications. The choice is driven by the need for high frequency stability in temperature-varying environments. Consider the 3.3V supply constraint and the specific output waveform compatibility with downstream circuitry during the selection process.

Oscillators Part Context

This part belongs to the TX3 series of oscillators from Transko Electronics, Inc., which are engineered for telecommunications and precision timing applications. The model number indicates a 26 MHz frequency variant within the TCXO family. The suffix typically denotes the reel packaging format for automated assembly processes.

Oscillators Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify pinout and electrical specifications carefully if considering alternative manufacturers.
