TXETDHSANF-32.000000

Oscillators Overview

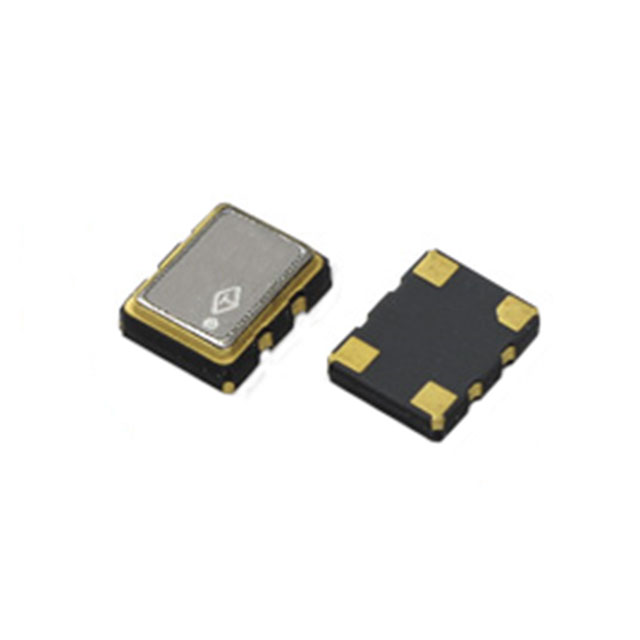

The Taitien TXETDHSANF-32.000000 is a Temperature Controlled Crystal Oscillator (TCXO) operating at a nominal frequency of 32 MHz. It delivers clipped sine wave output with a supply voltage range of 2.8V to 3.3V. The device features a stability of 2 parts per million and operates within a temperature range of -30°C to +75°C. It is housed in a compact 4-SMD, No Lead package measuring 3.20mm x 2.50mm.

Oscillators Feature Summary

• Temperature compensated crystal oscillator design for stable frequency generation
• Clipped sine wave output signal format
• Surface mount construction in a small footprint package

Oscillators Applications

• Telecommunications equipment requiring precise timing
• Wireless communication modules
• Navigation systems

Oscillators Procurement Notes

Verify the specific ordering part number against official Taitien documentation to ensure correct output waveform and tolerance specifications. Confirm that the 4-SMD no lead package dimensions align with your PCB layout requirements. Check for RoHS compliance status if required by your manufacturing standards. Ensure supply voltage compatibility with your system's power rails before integration.

Oscillators Selection Notes

Select this component when a stable 32 MHz reference is needed in space-constrained designs. The TCXO architecture provides superior frequency stability compared to standard XO types across varying thermal conditions. Consider the clipped sine wave output characteristics for interface compatibility with downstream logic circuits. Evaluate the operating temperature range against your environmental constraints.

Oscillators Part Context

This model belongs to Taitien's TCXO product line, which includes various quartz-based oscillators such as VCXOs and OCXOs. These components are designed for applications demanding high-frequency precision. The manufacturer specializes in frequency control products supporting aerospace and industrial sectors. This specific part represents a surface-mount solution for modern electronic assemblies.

Oscillators Replacement Considerations

Consult official cross-reference lists or distributor databases for compatible alternatives. Verify that any substitute matches the 32 MHz frequency, 3.3V supply requirement, and 4-SMD package dimensions. Ensure equivalent stability and temperature range specifications are met. Direct pin-to-pin replacements may vary in electrical performance parameters.
